Chrysler's Chrysler Chronicle X: Countdown to Pebble Beach- Three Months
By Walt Gosden
The most recent visit to Automotive Restorations in Lebanon, N.J. was on May 14, 2014 and further progress was in evidence towards the completion of the car. The wood frames that hold all the door/window latches and mechanisms have been fitted to the door shells and click shut with the stability and confidence of a bank vault door!

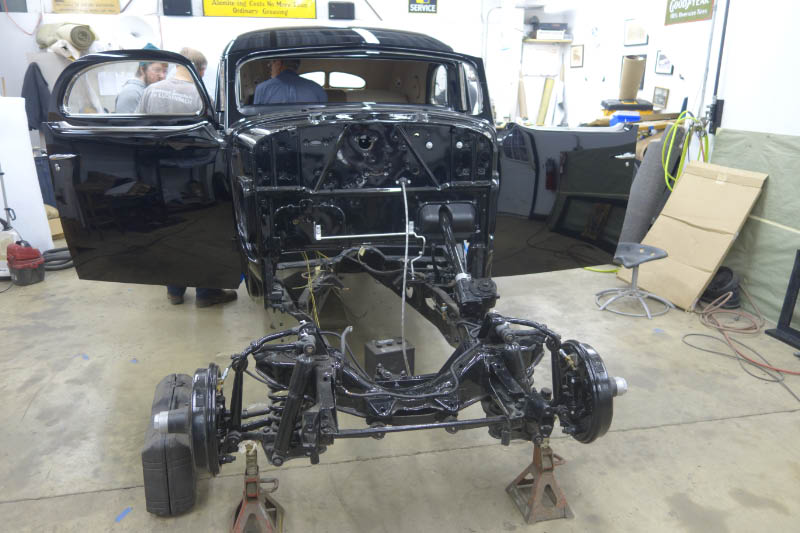

The Chrysler is still in the upholstery section of the shop and three of the staff were working on different aspects of trim when we were there. Note that the tops of the jack stands the car is resting on are covered so they don't leave marks on the chassis.

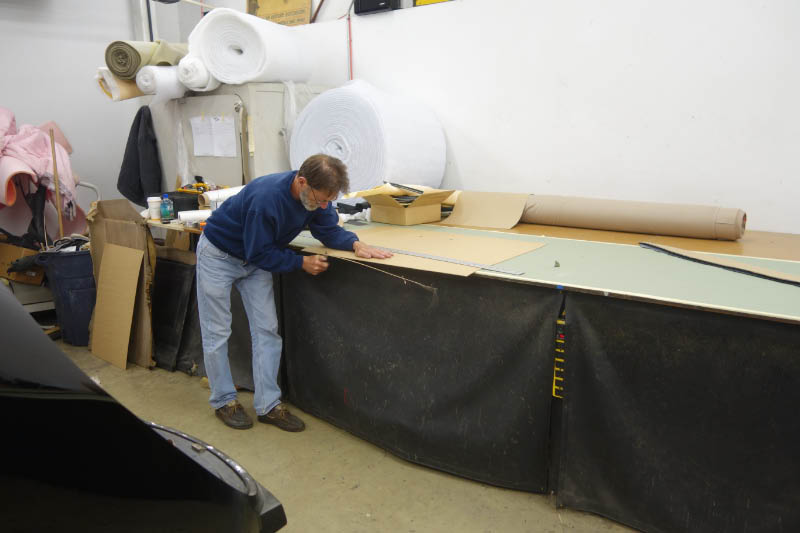

The large table in the trim area where the master craftsmen prepare the material before installation. Note the large bolts of material and padding on the shelf.

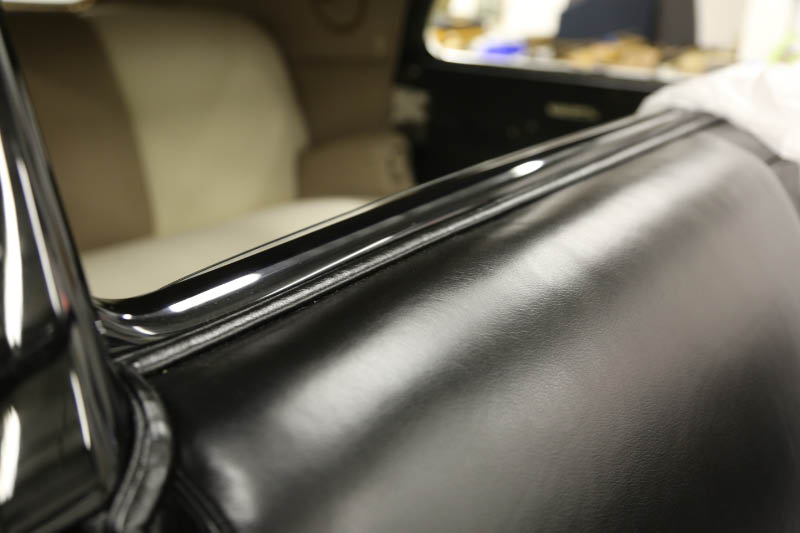

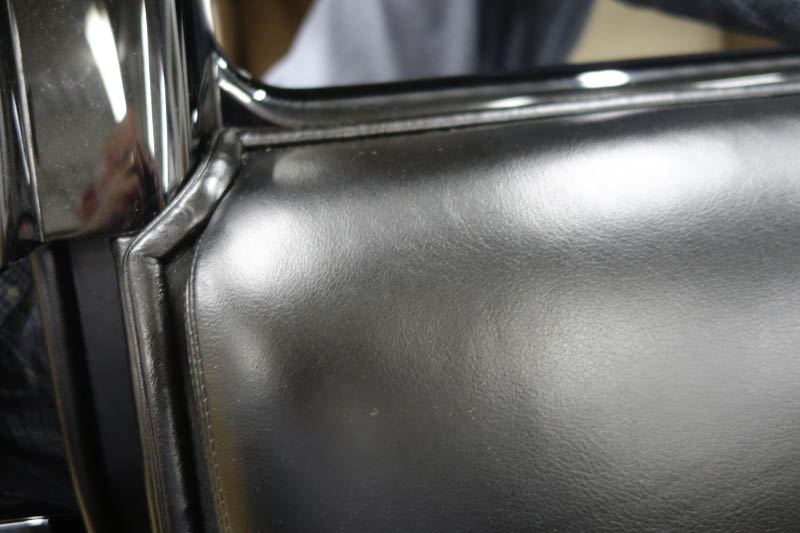

Tight corners at the top of the front seat bound in leather trim took time to fit so the leather didn't kink or bind and then not flow smoothly.

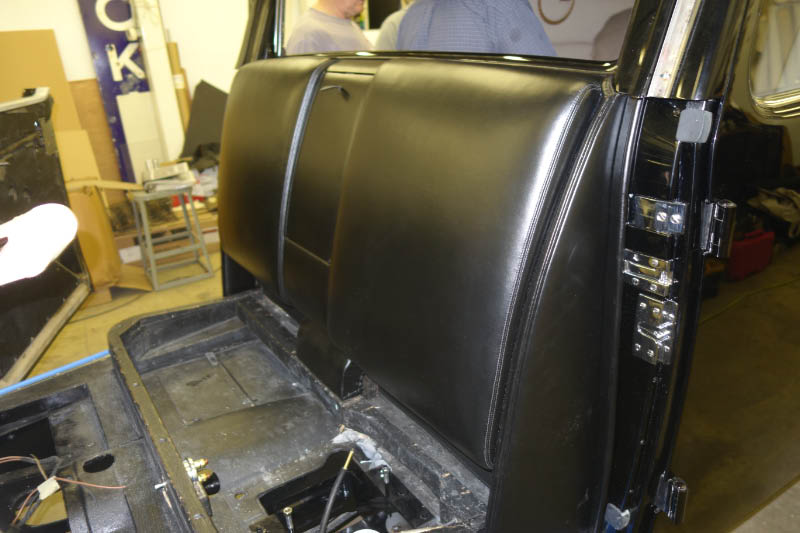

The front seat back is finished.

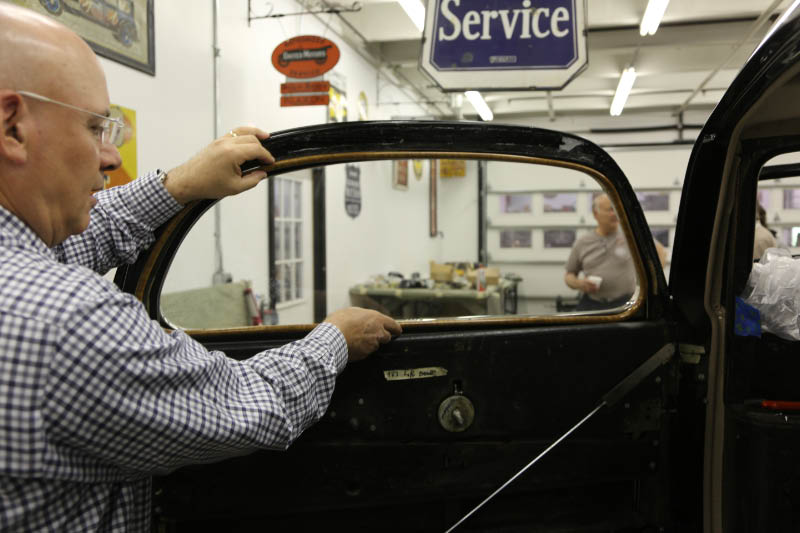

The interior window trim is extremely thin and although cut to maximize the look of the grain, also made it very fragile and prone to fracture. Howard holds the door window trim up to where it will be refitted.
The front seat edge against the division.

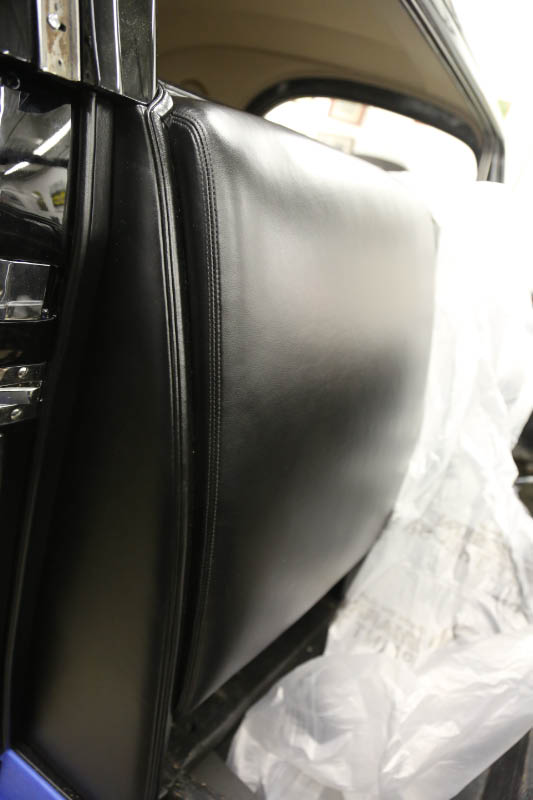

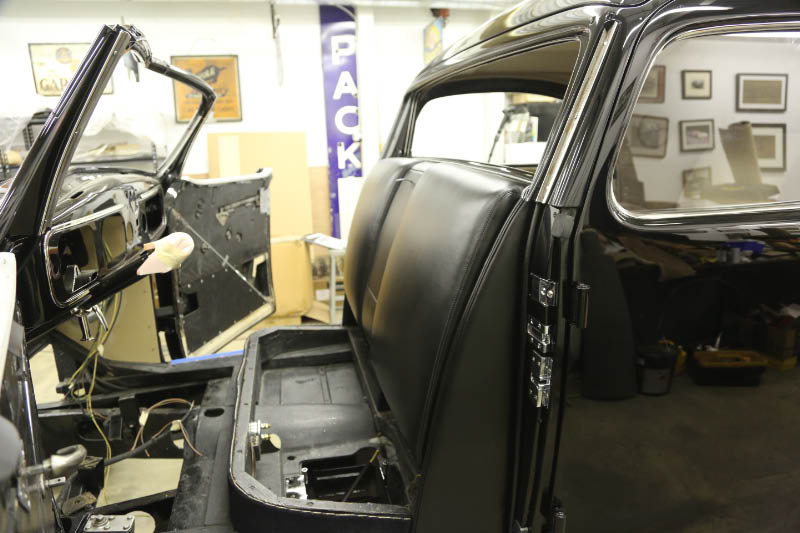

The front seat back from the left side.
Looking from the front seat on the driver's side you can view the switch at the bottom inside of the frame as well as the inside of the right door panel that is now back in place.
Looking through the division at the rear seat. The darker tan cloth is the finished surface. The lighter colored muslin covers the padding over the springs in the seat cushions. Note that the seams for the headliner run parallel to the length of the car - most all production and custom cars saw the seams in the headliner run side to side.

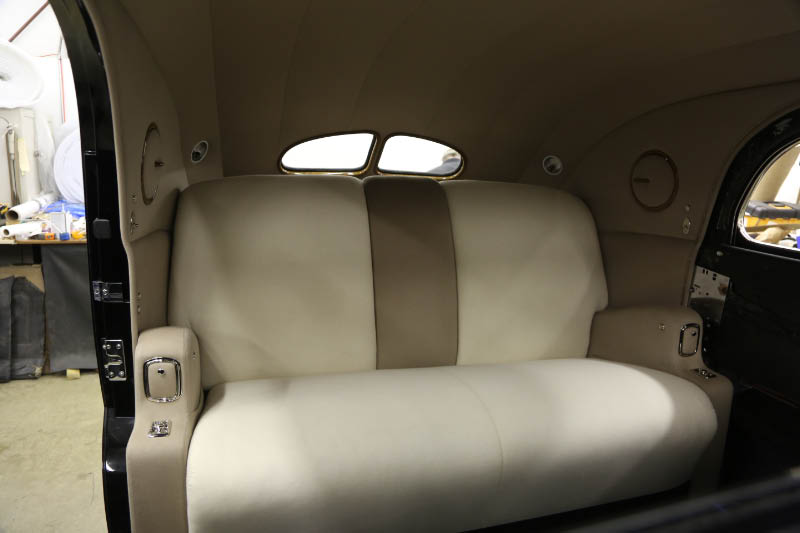

The rear seat has all the replated hardware in place.

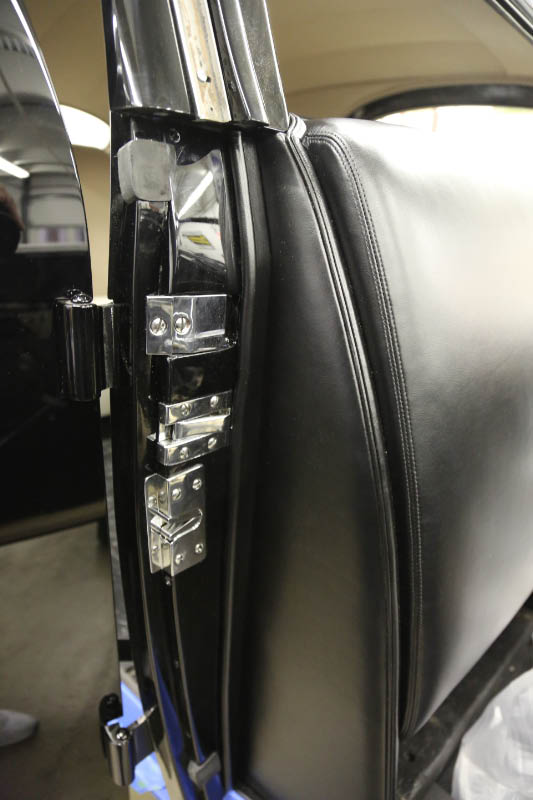

The door latches on the right "B" pillar are back in place in perfect alignment.

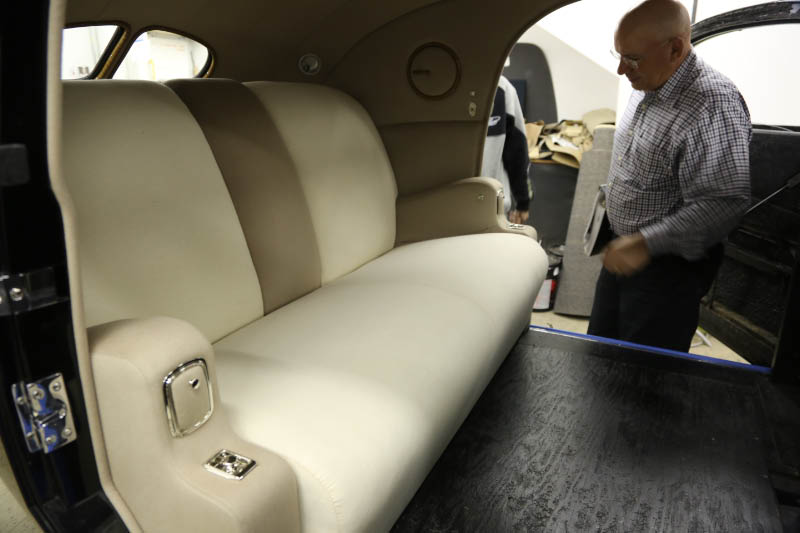

Howard views the rear seat with its pleated hardware and center arm rest in final cloth. Note the wood floor board.

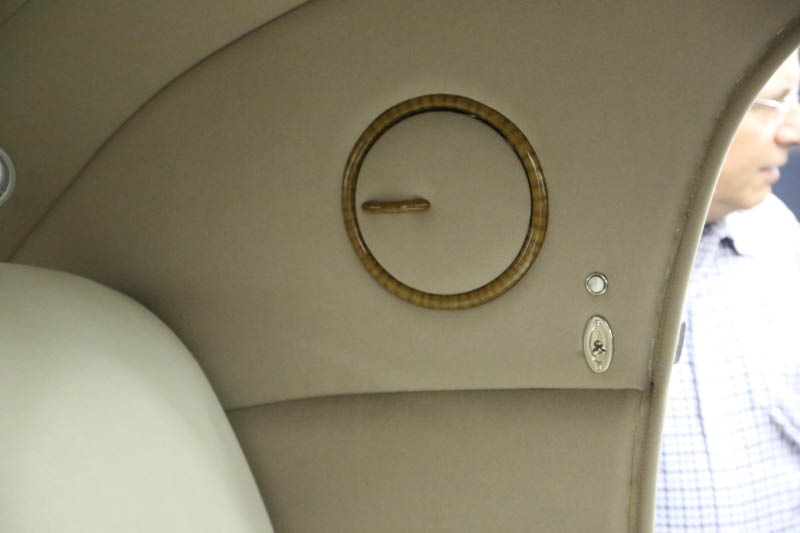

The rear seat vanity and buzzer on the left side.

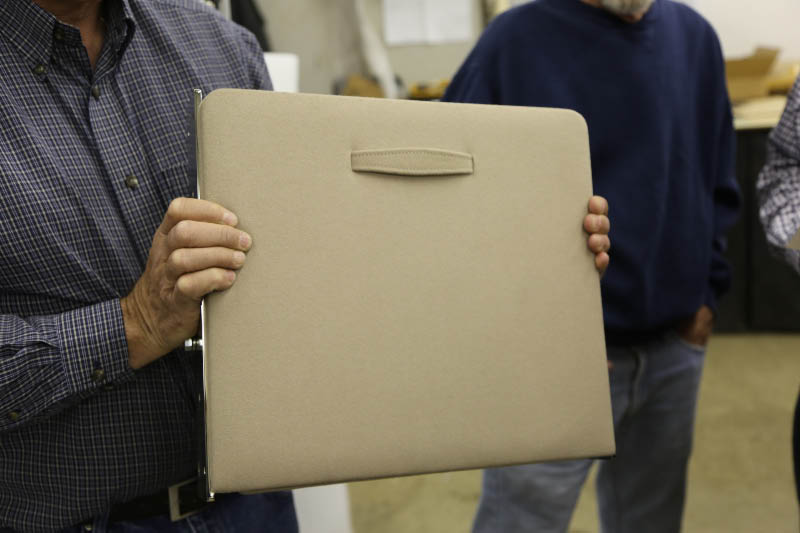

One of the rear jump seats ready to be installed once the decorative woodwork on the division panel has been put back in place.

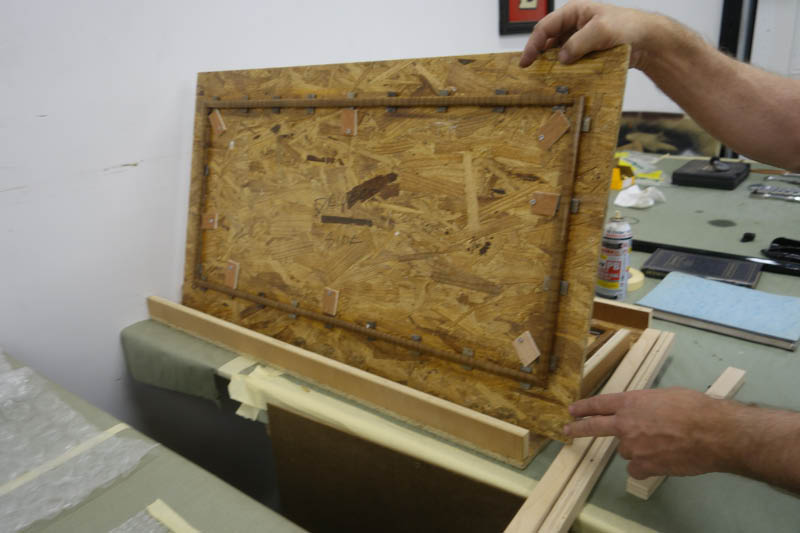

This door trim is inset into the center panel of cloth below the window on the rear door. Until it is refitted to the car it is mounted to a flat panel and held by small blocks of wood so it can keep its shape and not warp.

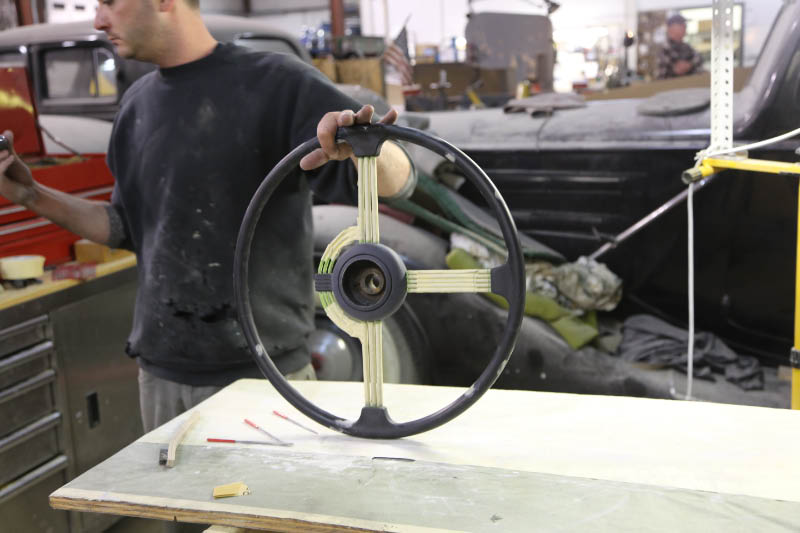

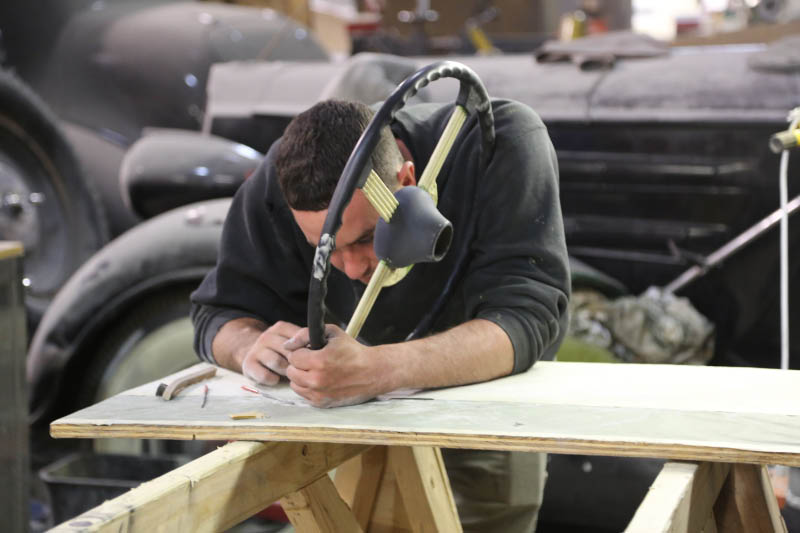

Restoring the rim on the steering wheel.
Tape covers the polished "banjo" steel spokes to keep them from being scratched.

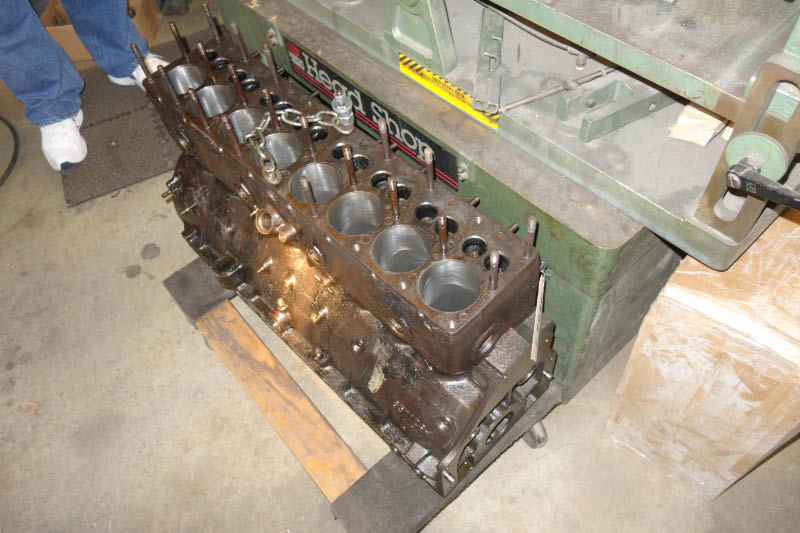

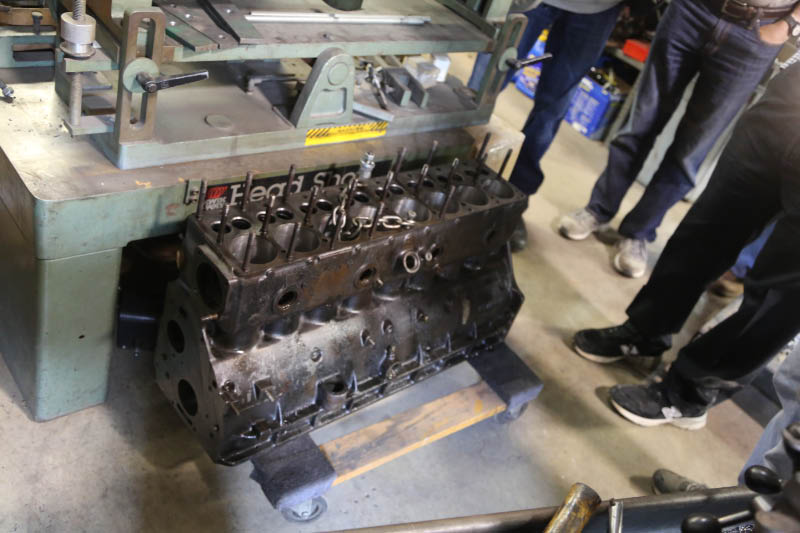

The engine block has been cleaned and bored out 10 thousandths over stock to polish up the cylinder bores.
The crank and camshafts were cleaned and polished with no further attention needed. New pistons and rings will be fitted.

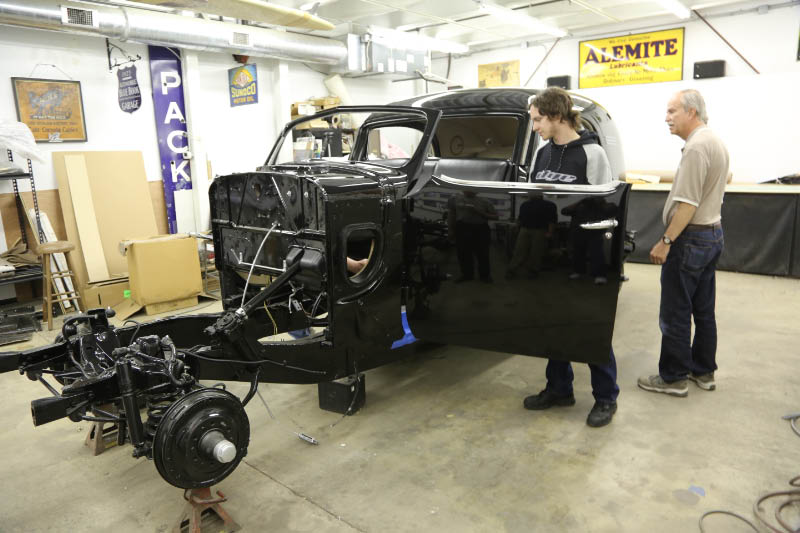

Trevor and Walt Gosden view the progress.
Mike of Automotive Restorations shows Howard, Trevor and Walt a piece of sheet metal he cut out of the front fender to replace it with new metal. The four fenders and rear fender skirts are painted and are ready to be reinstalled.

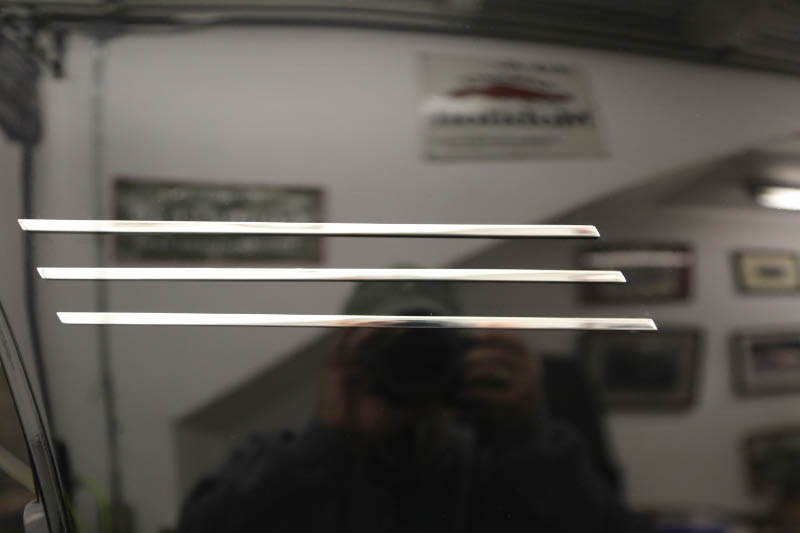

The decorative rear speed streaks just behind doors on the quarter panel.

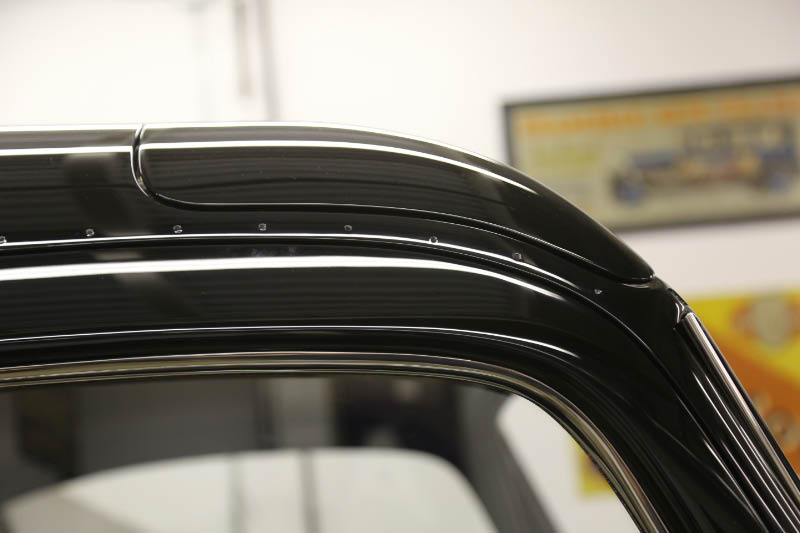

The newly fabricated cap at the leading edge of the roof just above the division window. The holes you see will accept screws that hold the rain gutter on when it is installed.

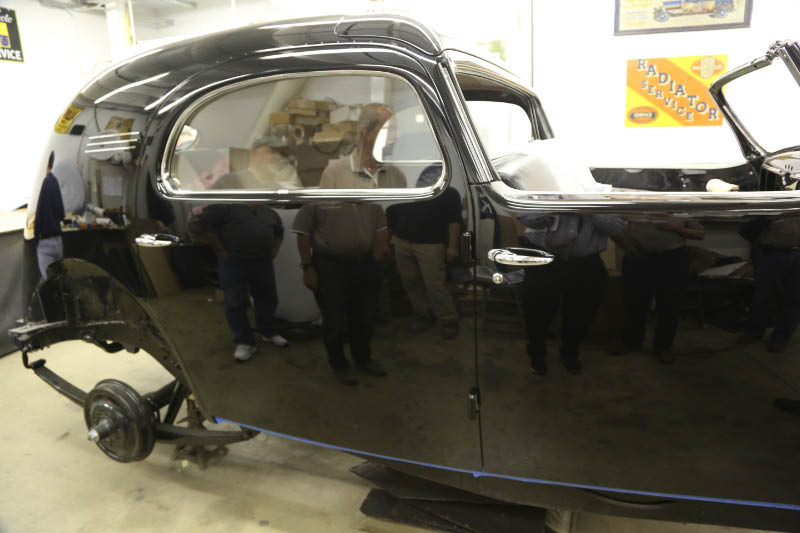

This shows the door handles and door lock in place as well as the polished stainless steel trim around the window on the rear door. Note the reflection in the paint!

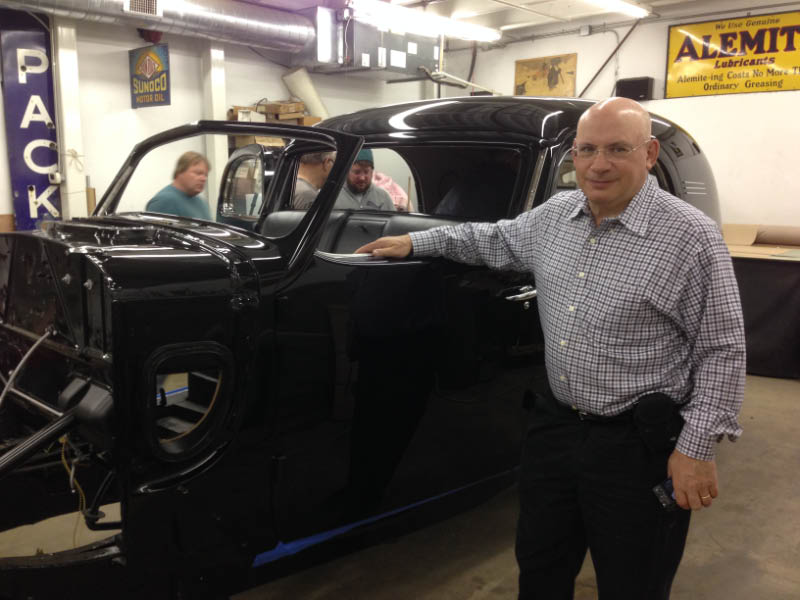

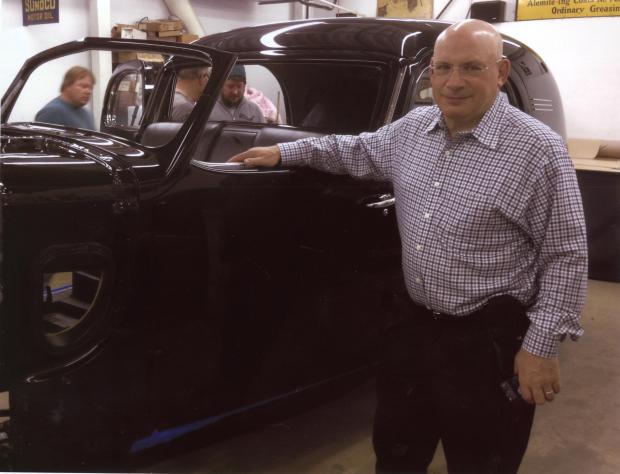

A very proud and happy Chrysler owner.
