Mar 21 2020

VanderbiltCupRaces.com Exclusive: The 1910 Motor Parkway Survey Bookmap


In 2009 I purchased 572 original Motor Parkway surveys and maps from the firm of  Barrett, Bonacci and Van Weele. Over the last 90 years, this company had acquired many very original Long Island survey firms, including those which work for the Long Island Motor Parkway, Inc. from 1906 to 1985.  One of the treasures of this purchase was a 1910 "Bookmap" documenting the right-of way, the original property owners, and the corresponding survey plan #s. As noted by Al Velocci, the term bookmap was used by the Motor Parkway's general manager A.R. Pardington to describe this document.

The Motor Parkway Survey Atlas (1910)

The  Motor Parkway Survey Bookmap consists of 22 canvas pages (each 17 1/2" x 12").  Unfolded, the Bookmap measures 32 feet by 1 foot The original canvas pages are marked from 1 to 18 with surveys from Lakeville Road, Lake Success to Lake Ronkonkoma. Three more canvas pages (A, B, and C) were added documenting the Motor Parkway extension west from Lakeville Road  to Nassau Boulevard, Fresh Meadows from 1910 to 1928. There is also an Index page to find properties and roads.

Although the original canvas pages of the Bookmap are not dated, it was likely created in 1910 based on the Lakeville Road western terminus  and the identification of the Petit Trianon as the L.I.M.P. Inn. The original surveyor was probably Arthur Archibald , who created many of the Motor Parkway surveys in the Barrett, Bonacci collection.

From 1927 to 1930, my copy of the Motor Parkway Survey Bookmap was used to indicate the location of survey monuments and changes in the Motor Parkway right-of-way including the Commack Etension (Spur). These notations were hand-written in ink.

My plan is to scan the entire Motor Parkway Survey Bookmap and place it on VanderbiltCupRaces.com. Here are some examples.

Be Safe, Stay Healthy,

Howard Kroplick

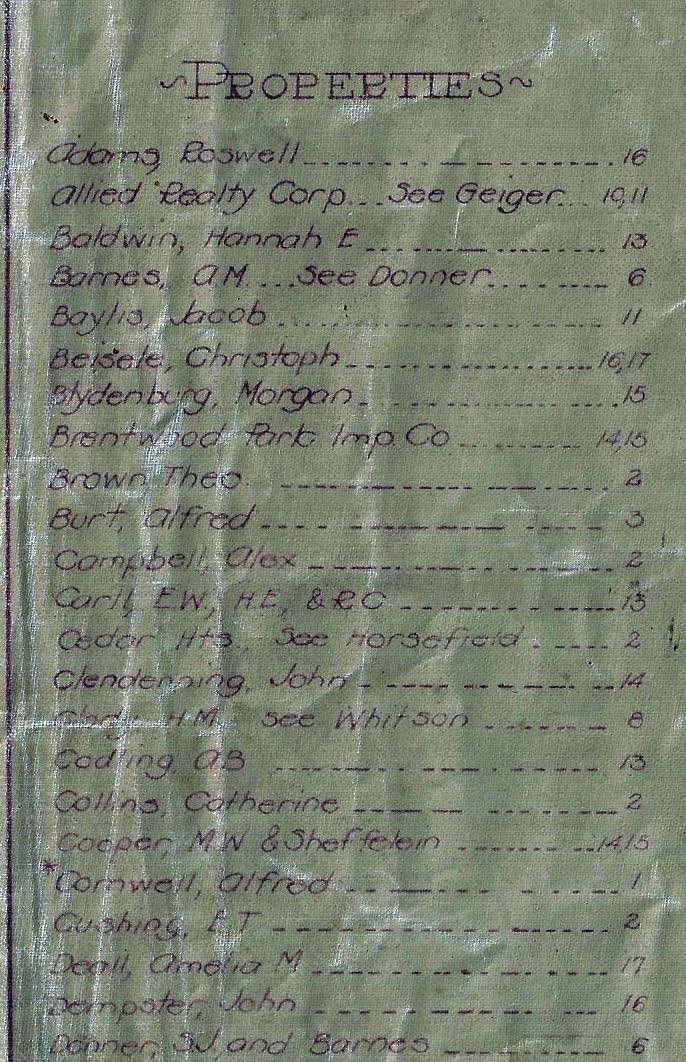

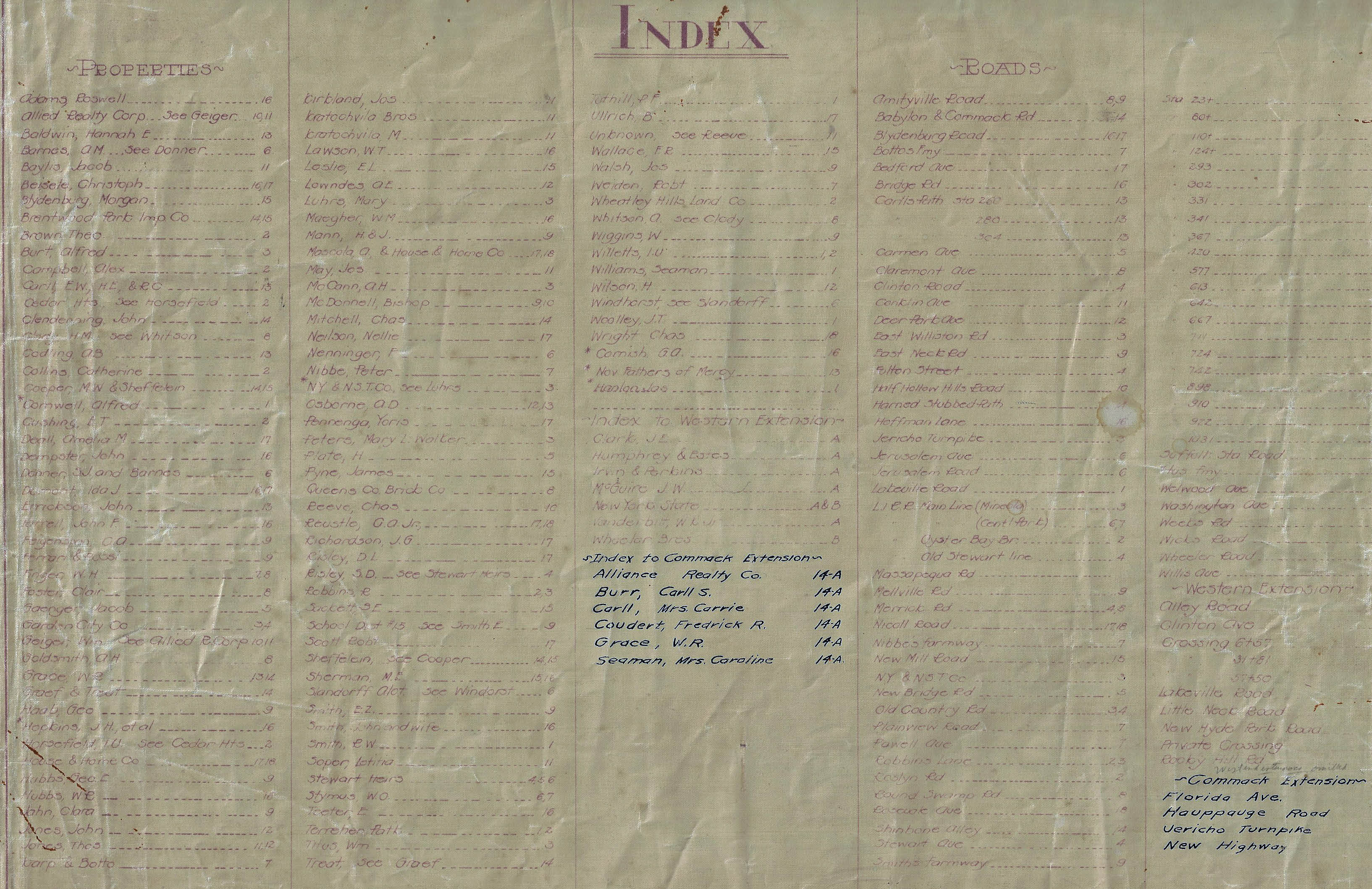

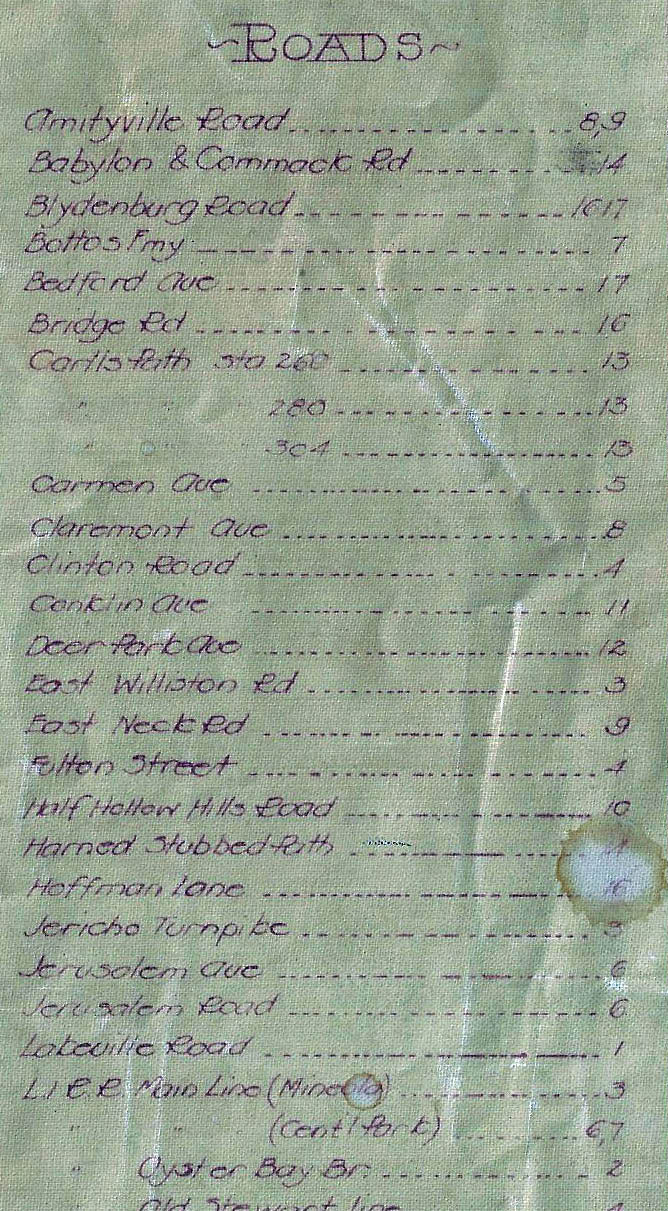

Index

The Index page. Note: The hand-written additions from the Commack Extension

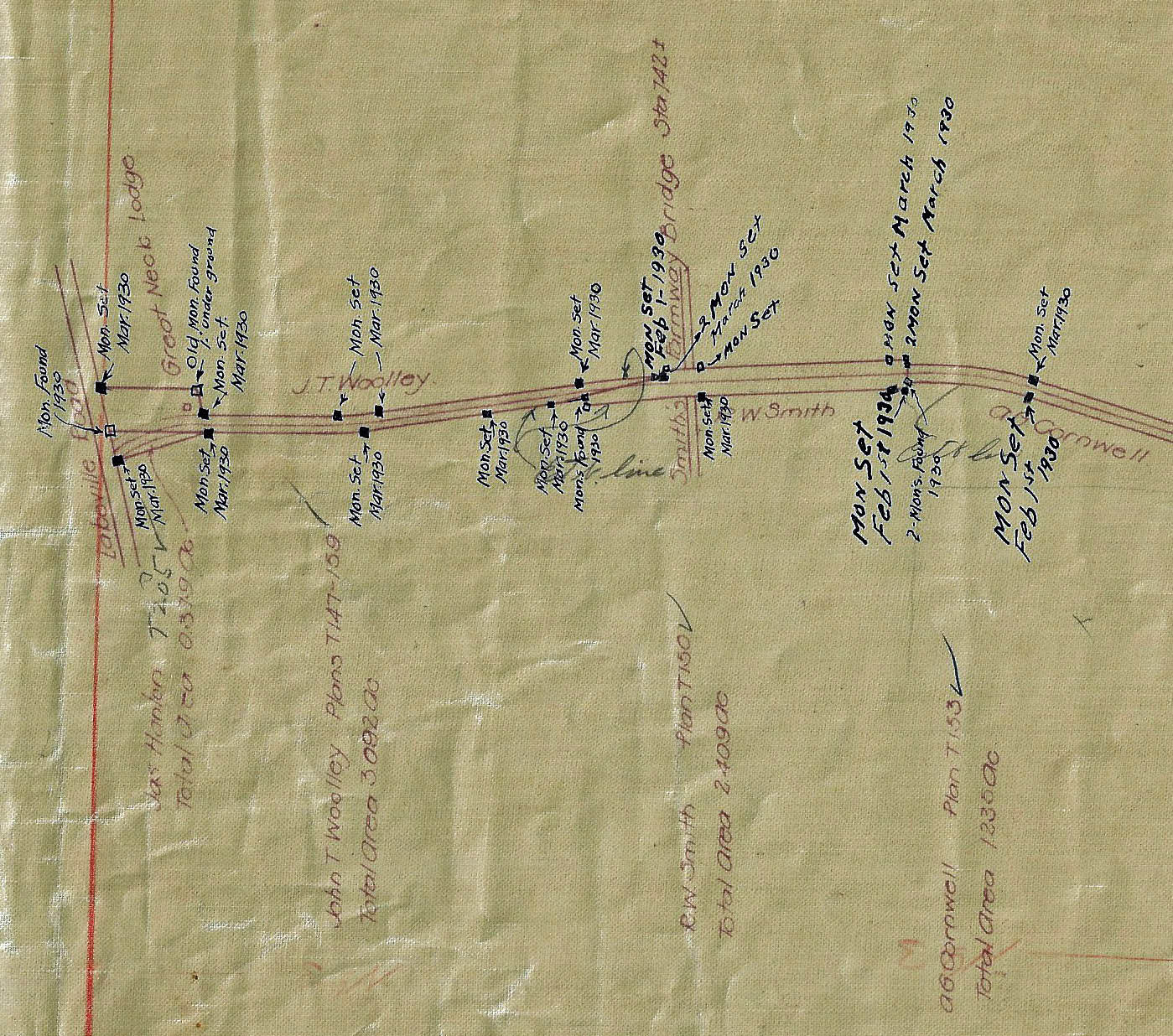

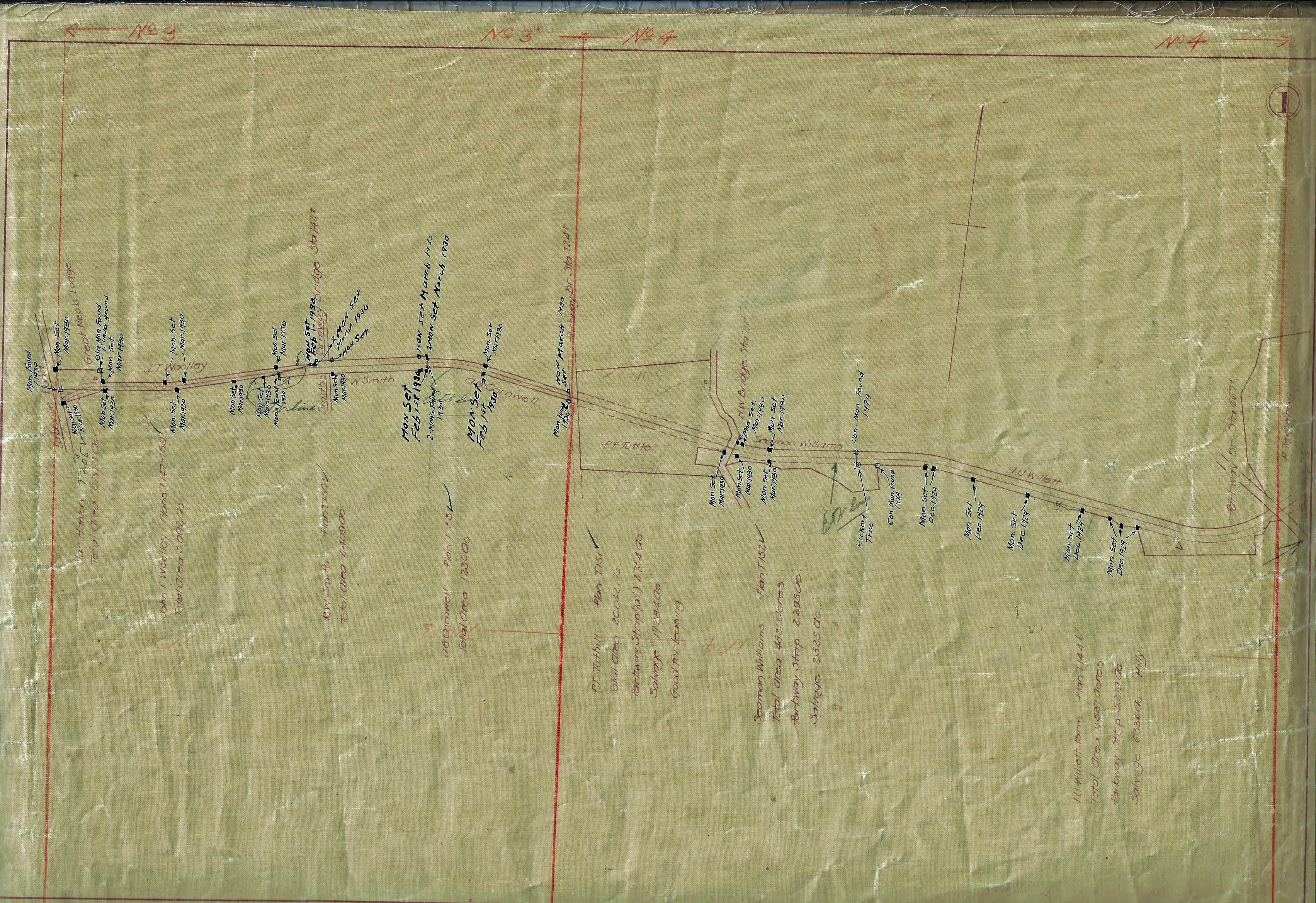

Page 1 The Western Terminus in 1910

Lakeville Road, Lake Success to New Hyde Park Road

Note: The hand-written 1930 monument notes

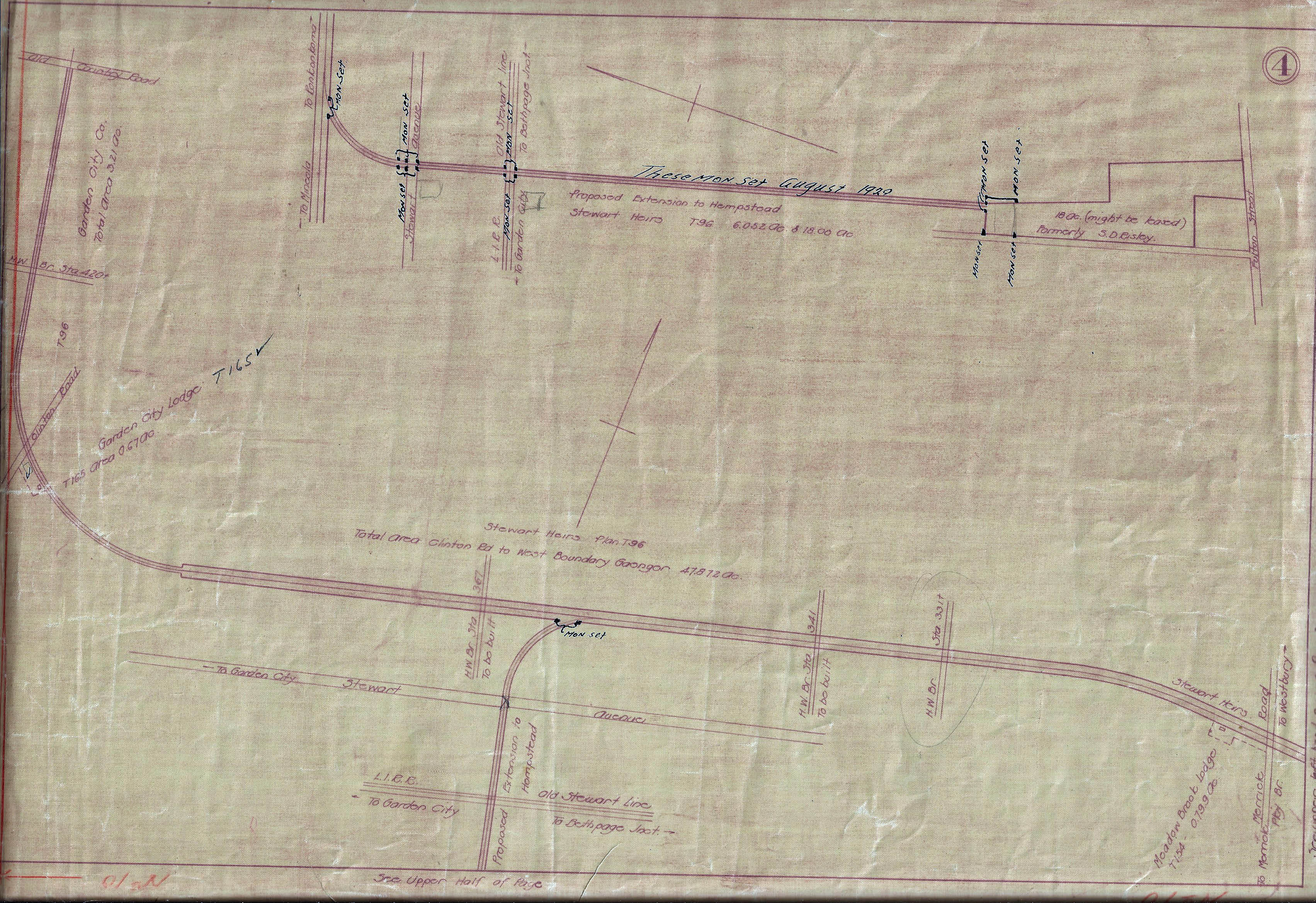

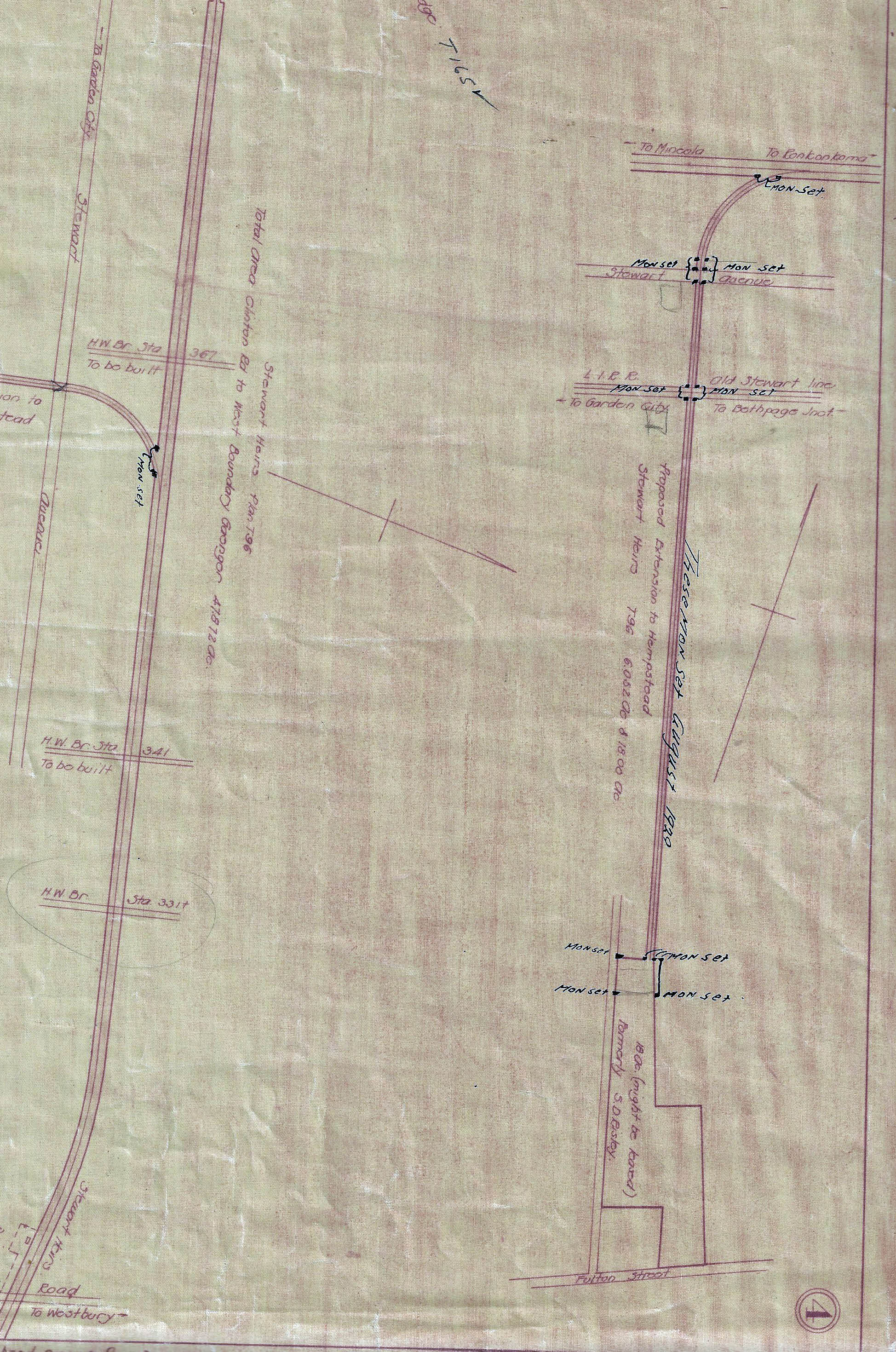

Page 4- Garden City and the Hempstead Spur

The never-built  Hempstead Spur to Fulton Street

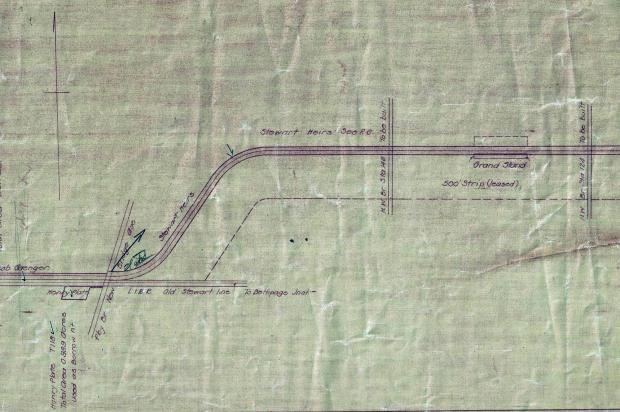

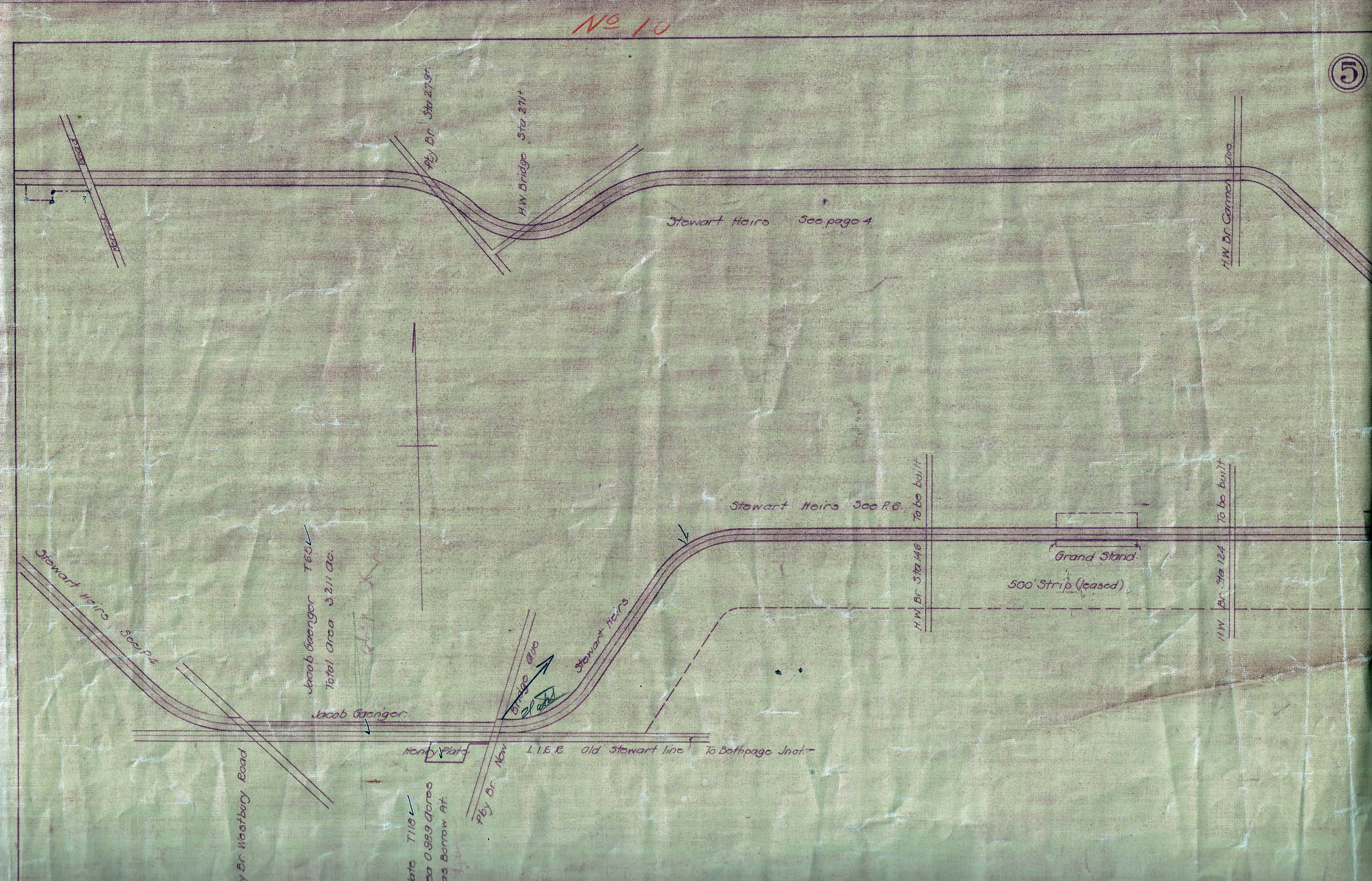

Page 5 East Meadow and Hempstead Plains

The location of the grandstand for the 1908 to 1910 Vanderbilt Cup Races

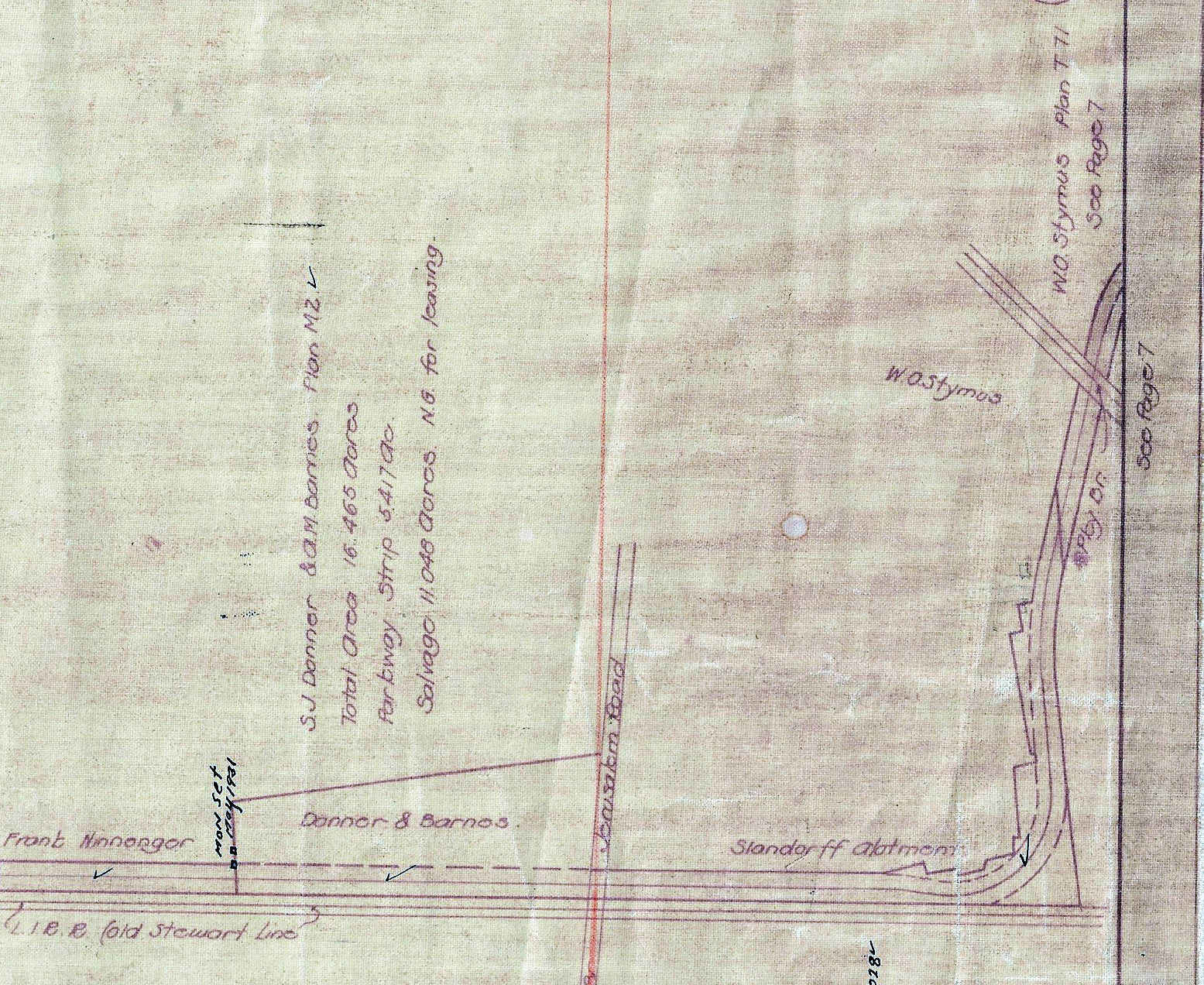

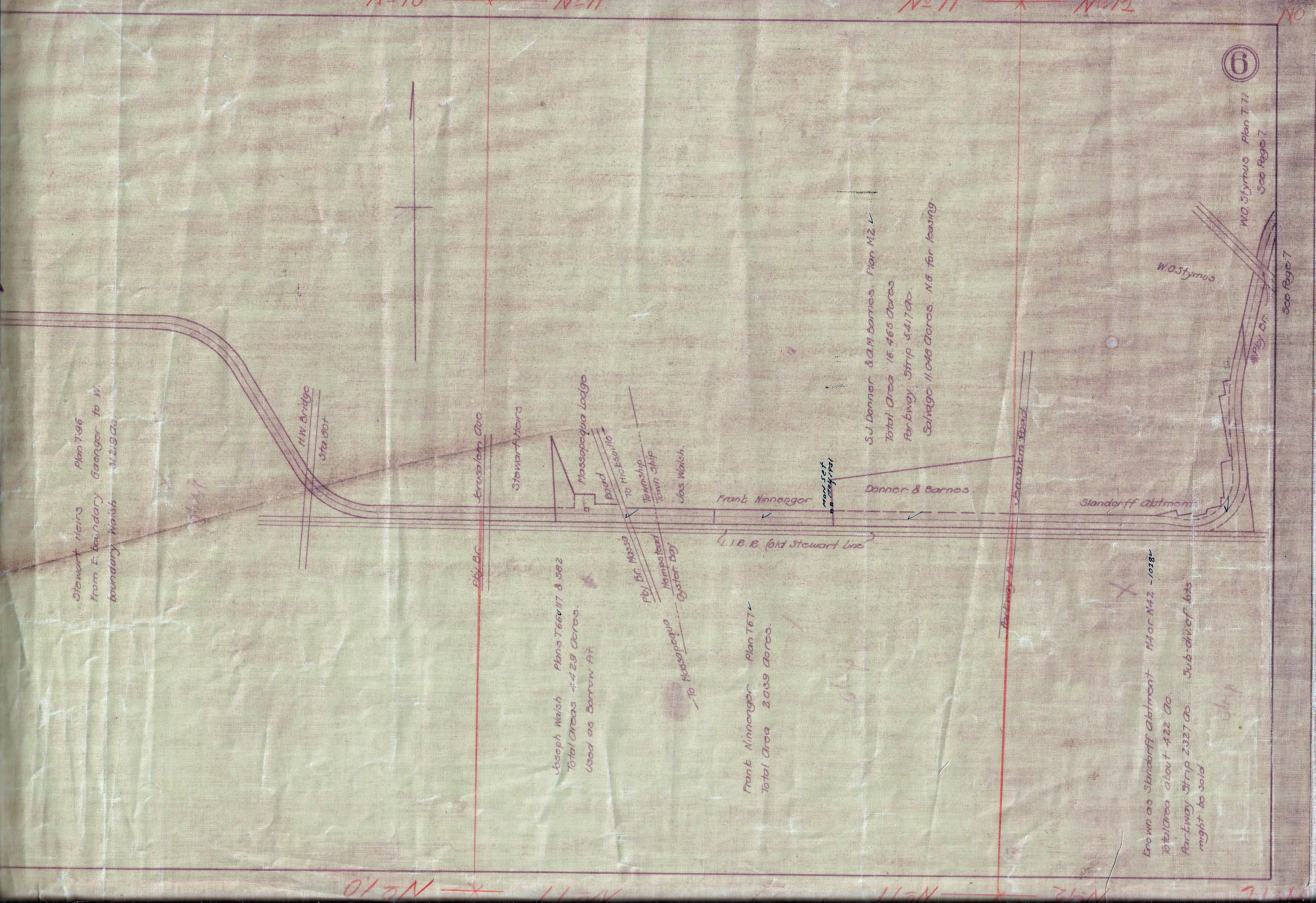

Page 6 Central Park (Bethpage)

The location of the ground-breaking ceremony and Deadman's Curve

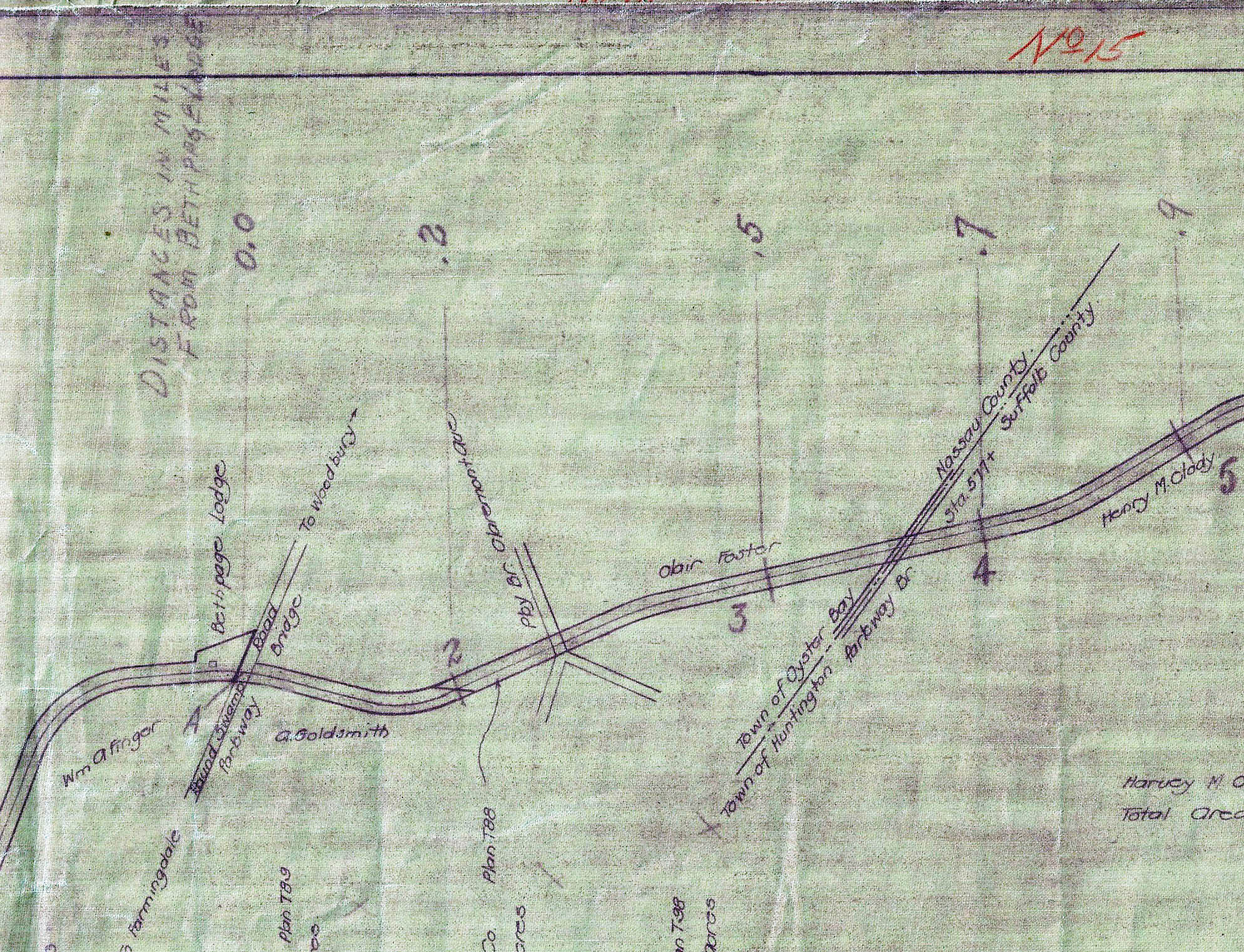

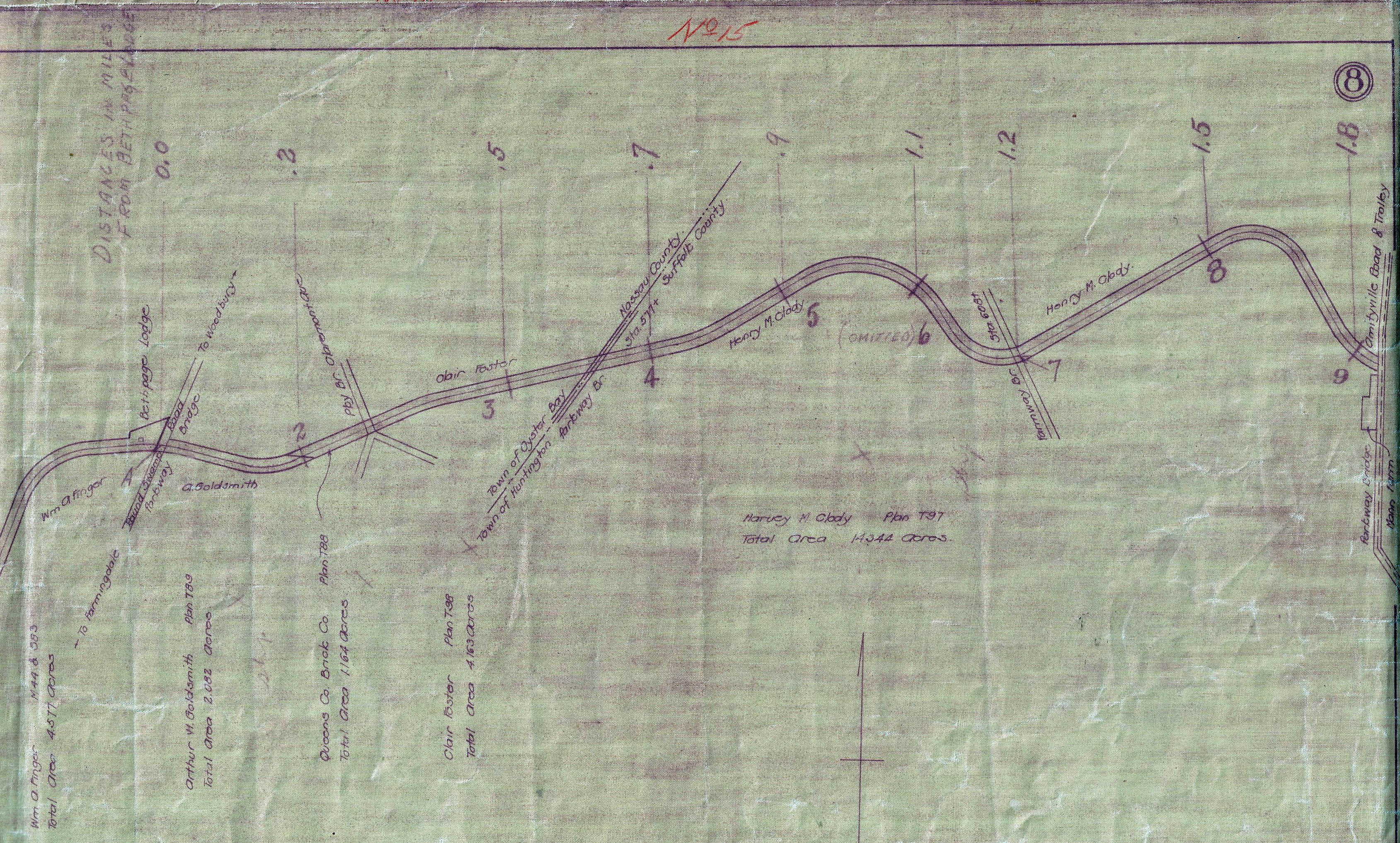

Page 8 Bethpage to Melville

Note: the "Distance from the Bethpage Lodge" is indicated  on the top of the pages heading east to Lake Ronkonkoma.

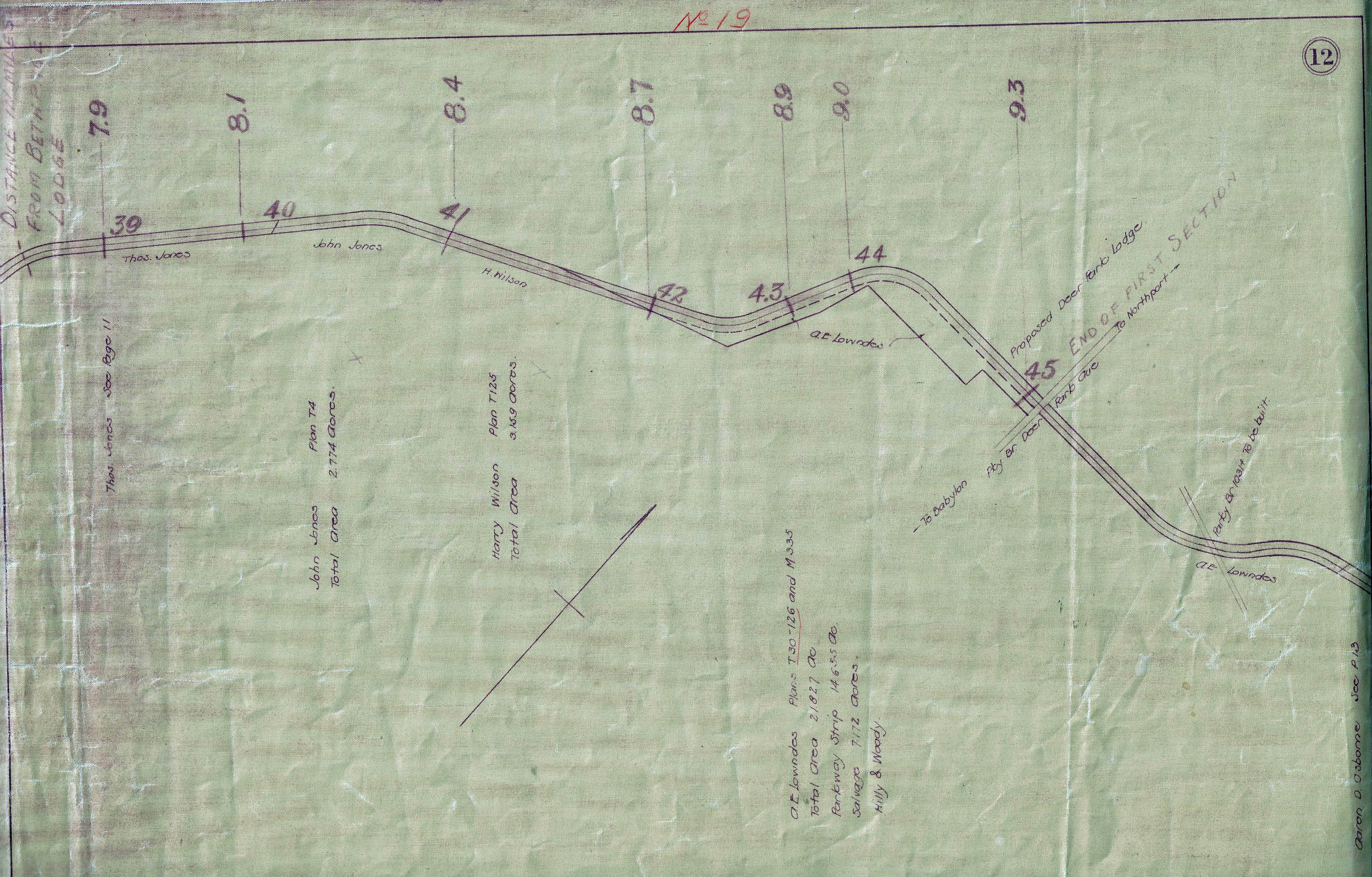

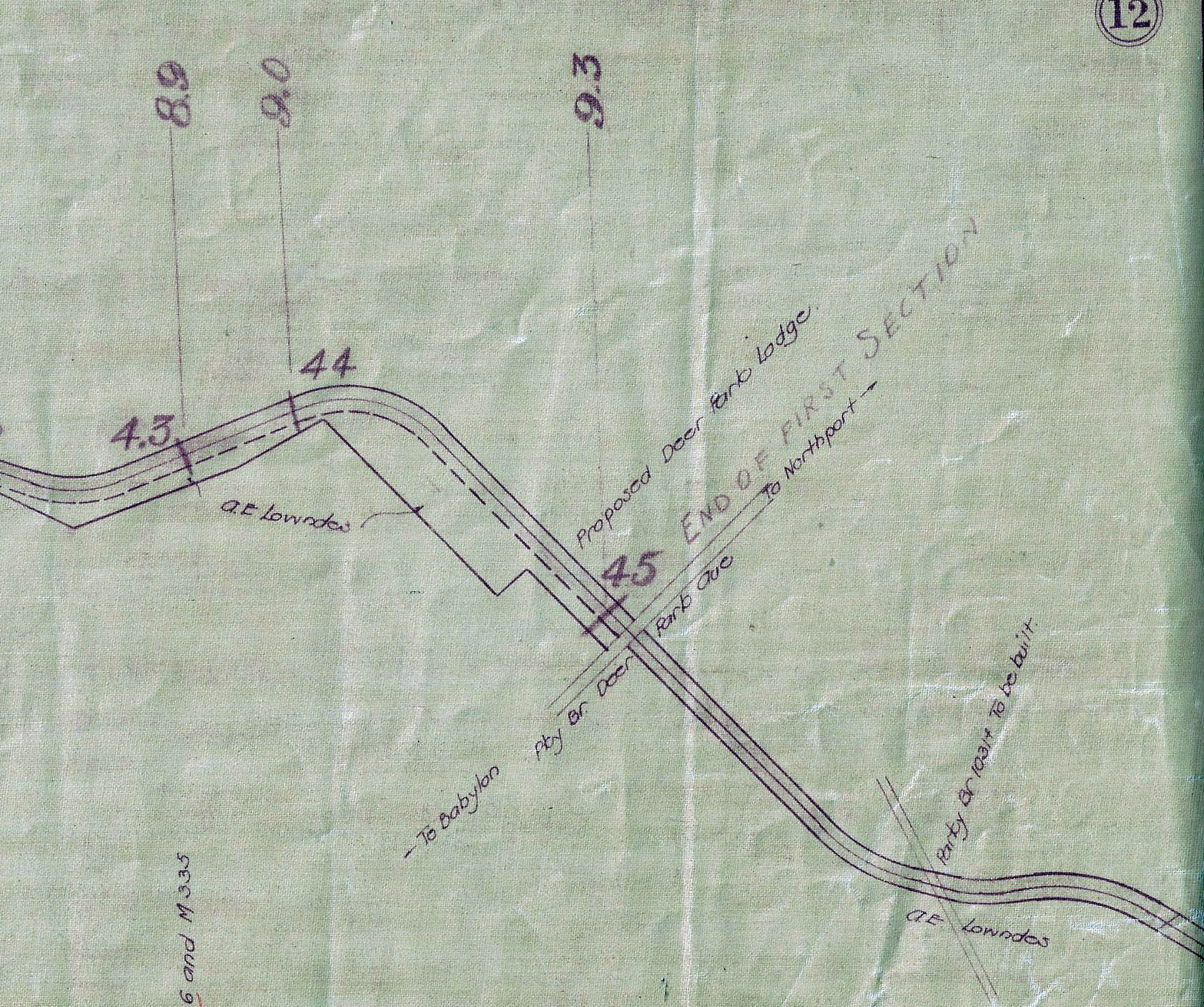

Page 12 Dix Hills

The proposed location of the Deer Park Lodge that was never built. 9.3 miles from the Bethpage Lodge.

Hand-Written Note: End of First Section

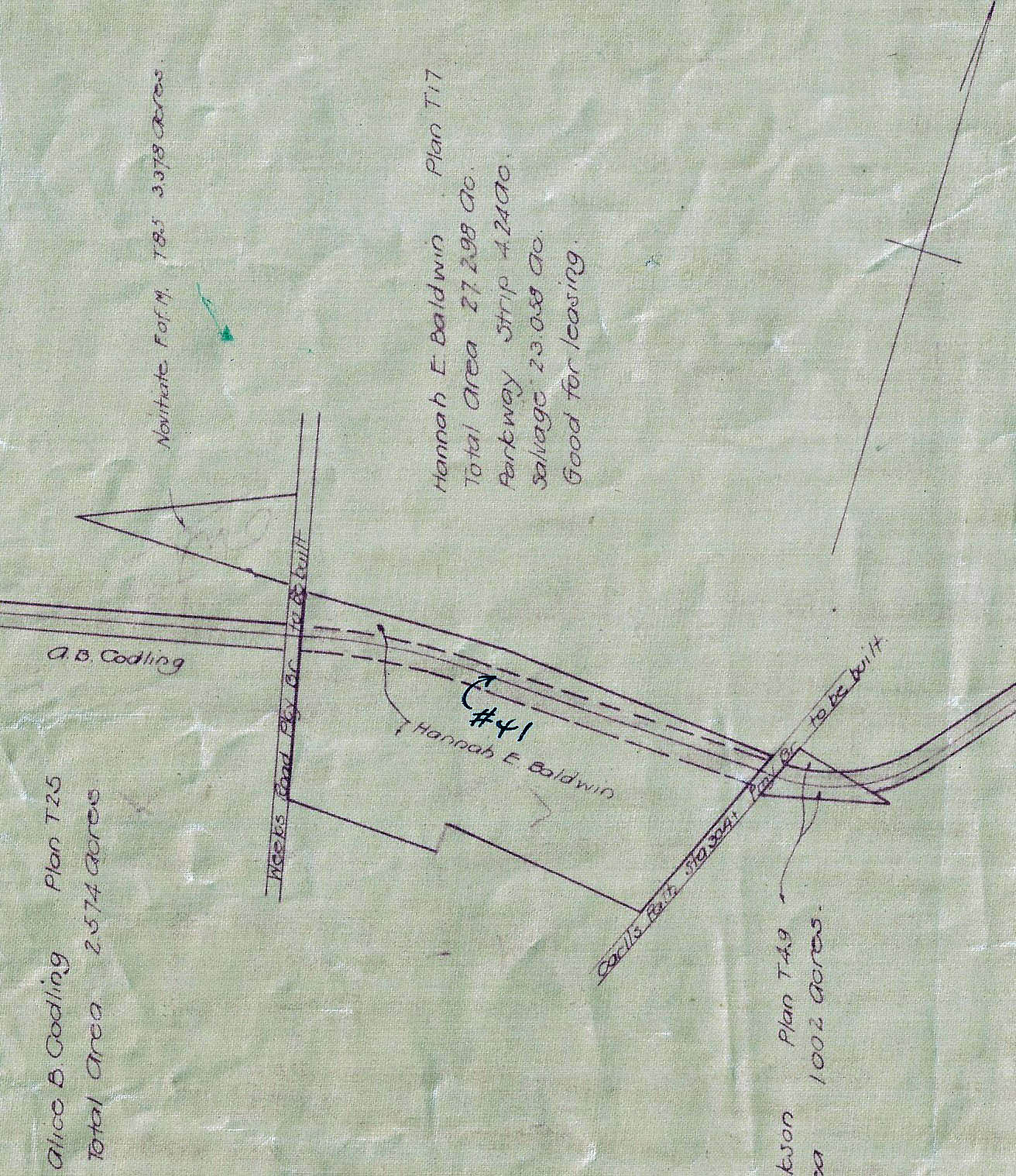

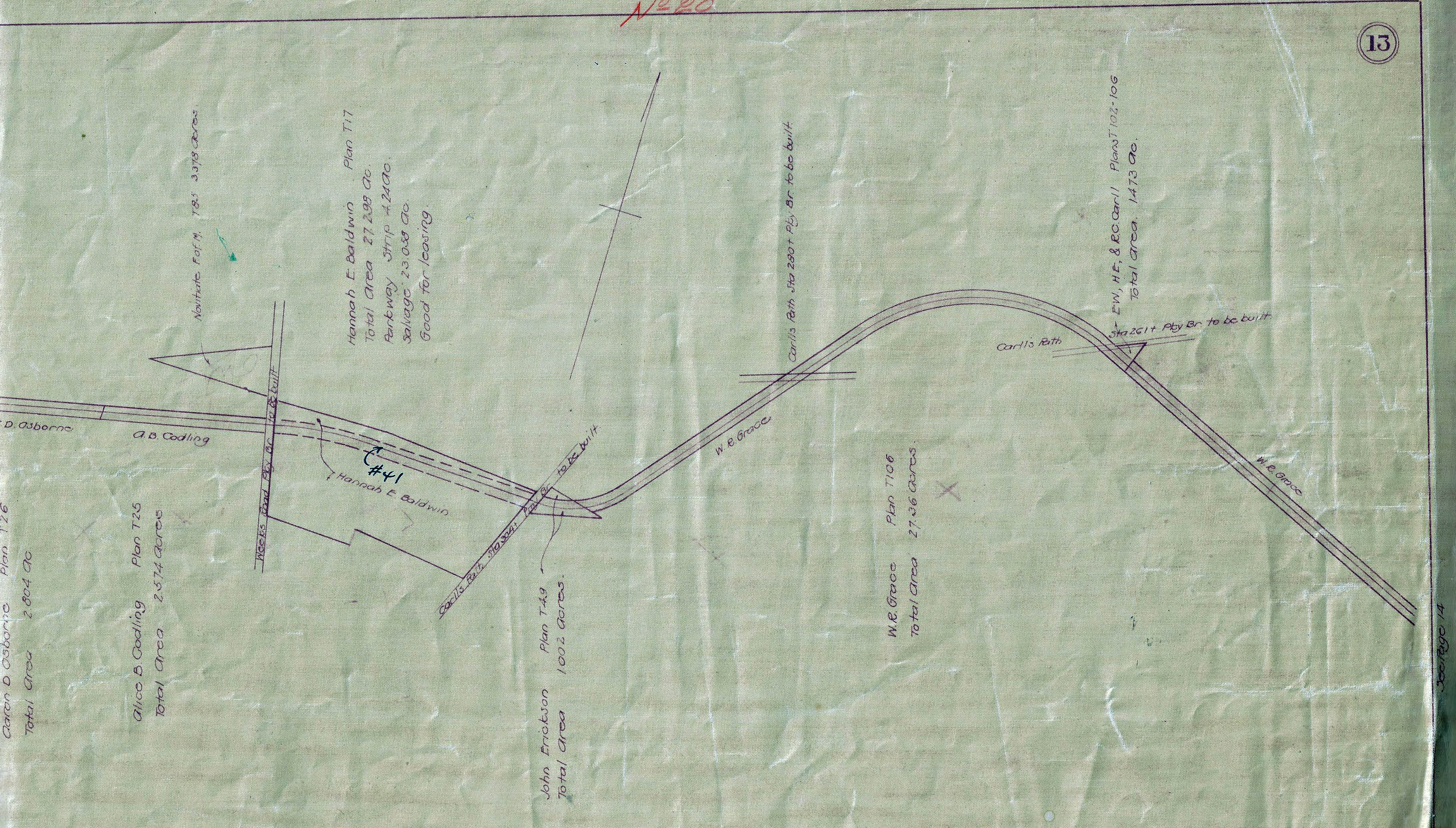

Page 13 Dix Hills

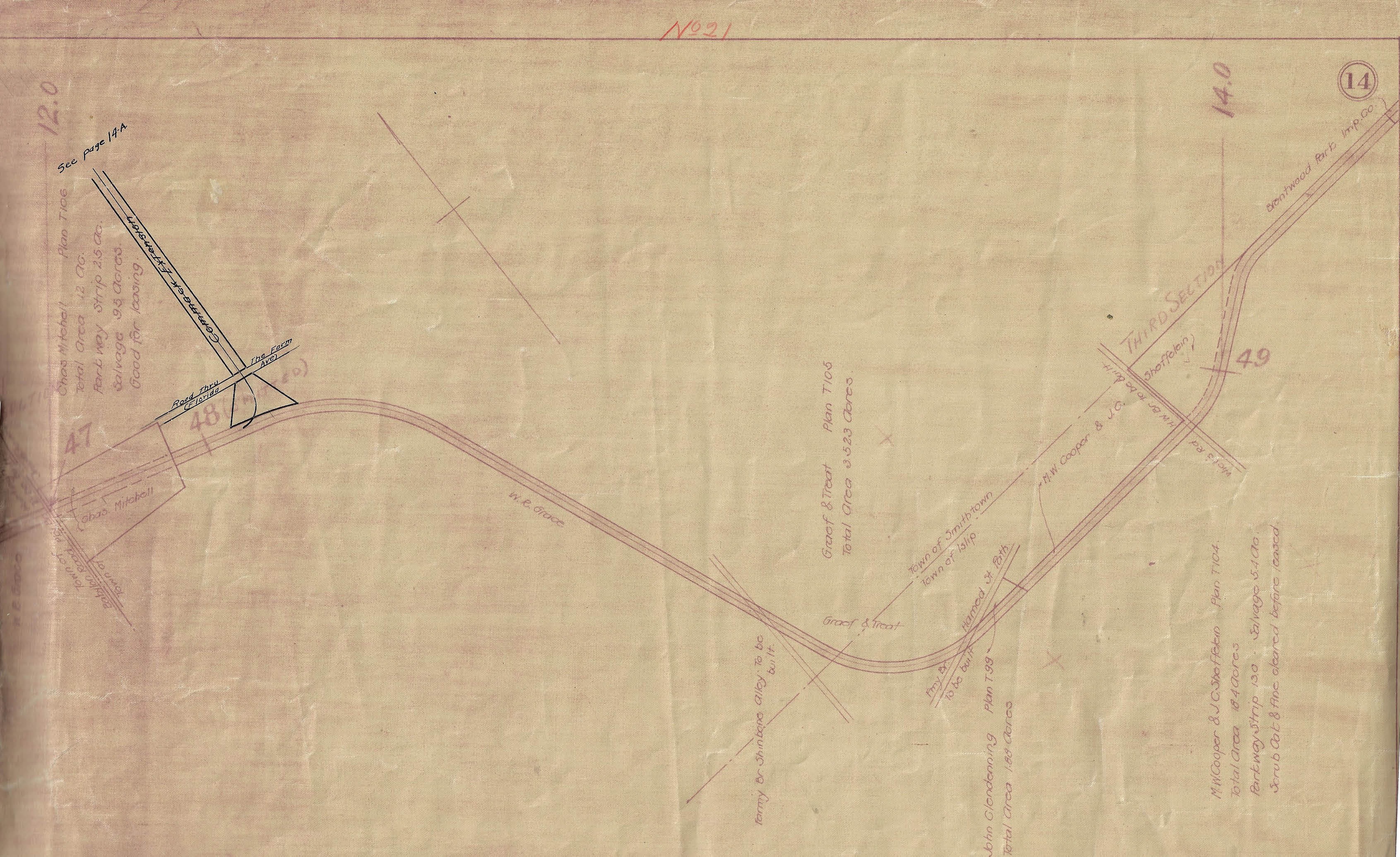

Page 14 Commack

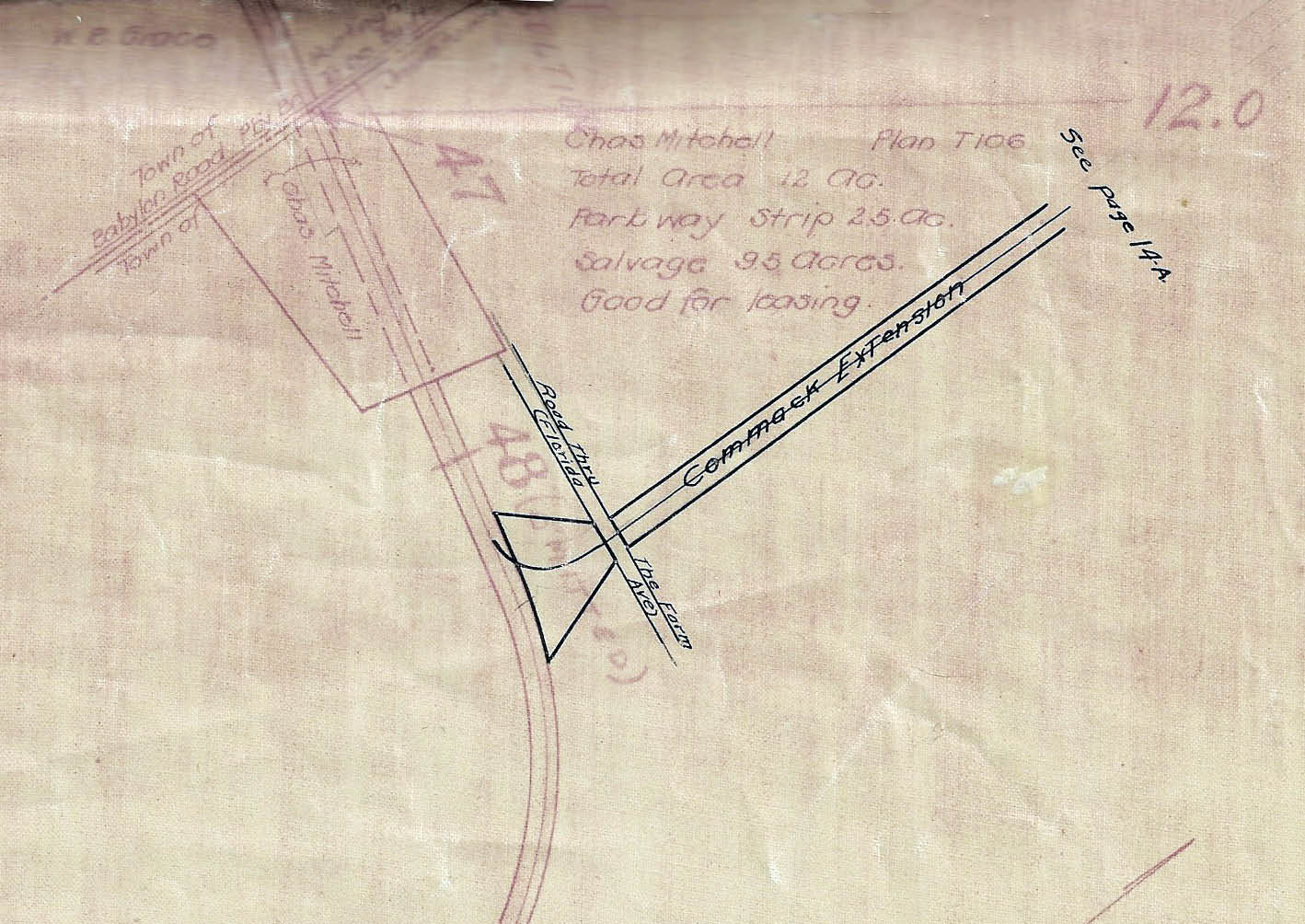

The Commack Extension

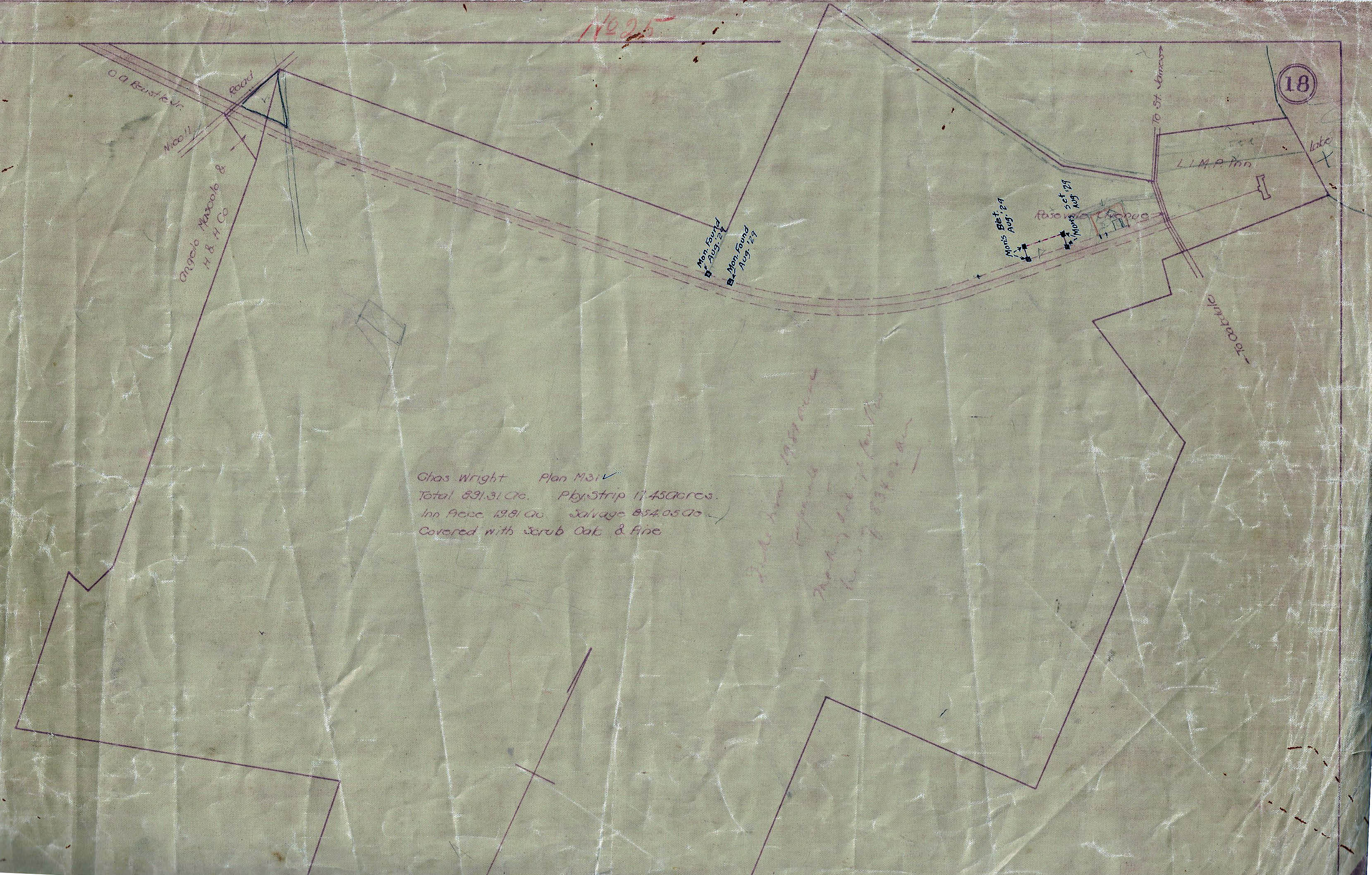

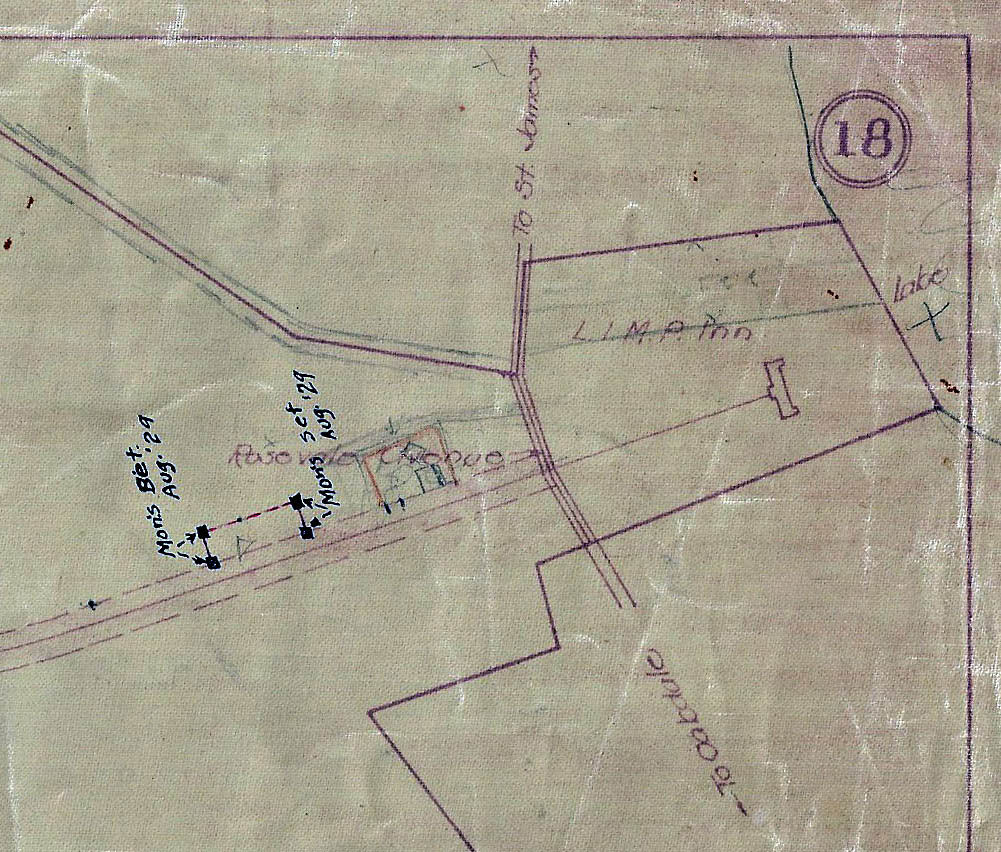

Page 18 Lake Ronkonkoma

L.I.M.P, Inn (later named Petit Trianon)

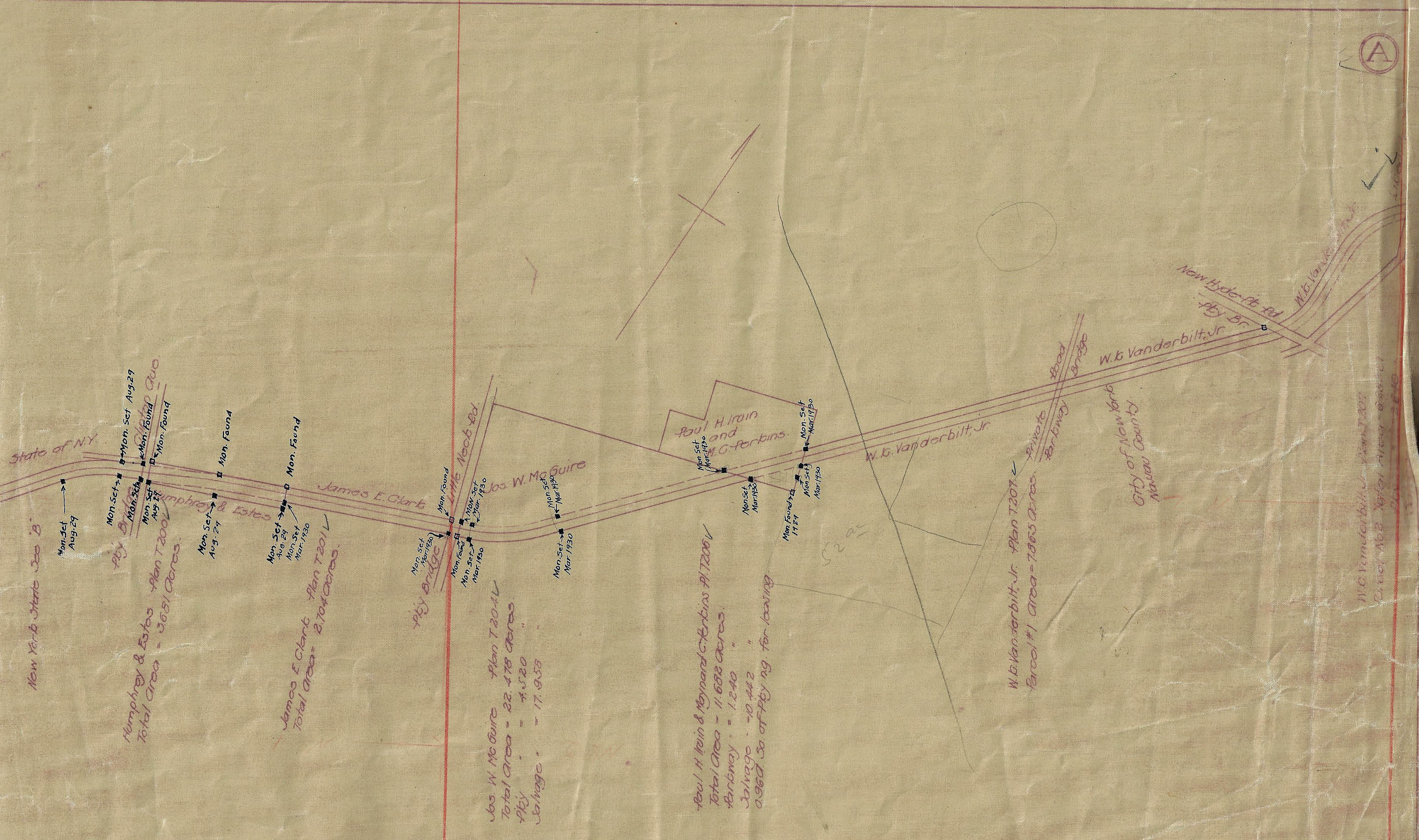

A Queens

Pages A, B, and C were added to the original Bookmap

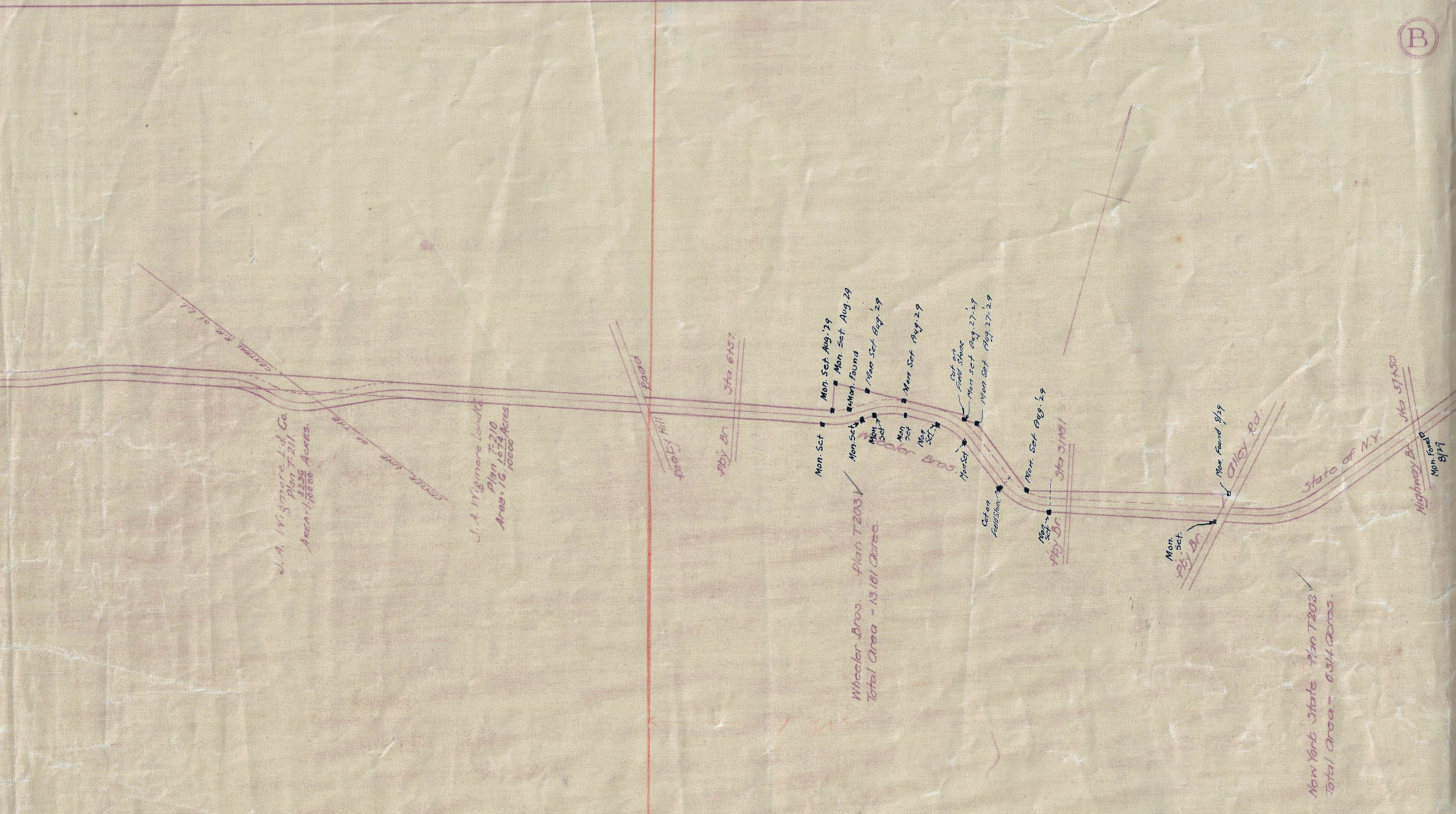

B Queens

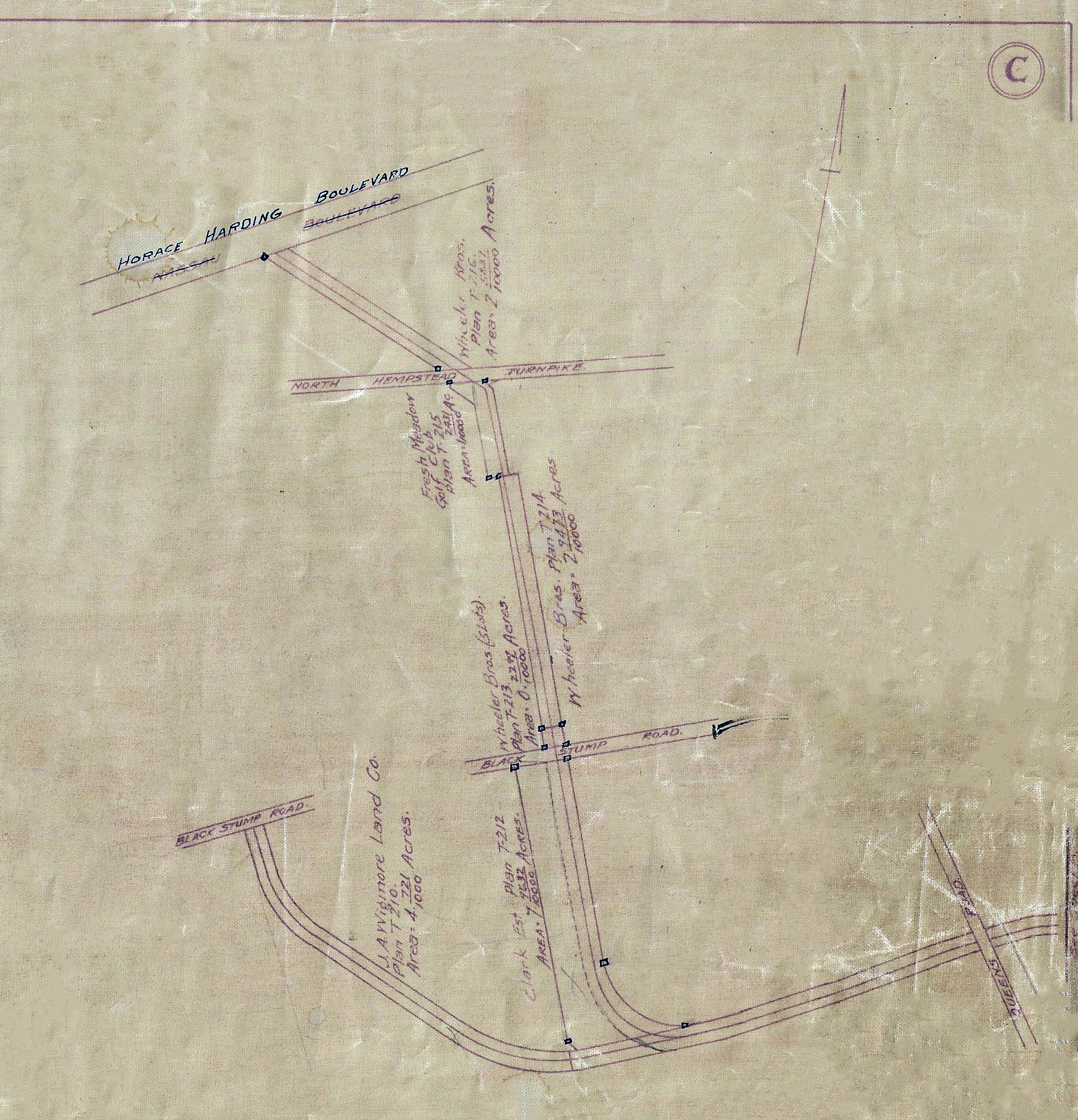

C Fresh Meadows, Queens

The original planned Western Terminus  and the actual Western Terminus at Nassau Boulevard.
